Adrian Stratford Motorsport

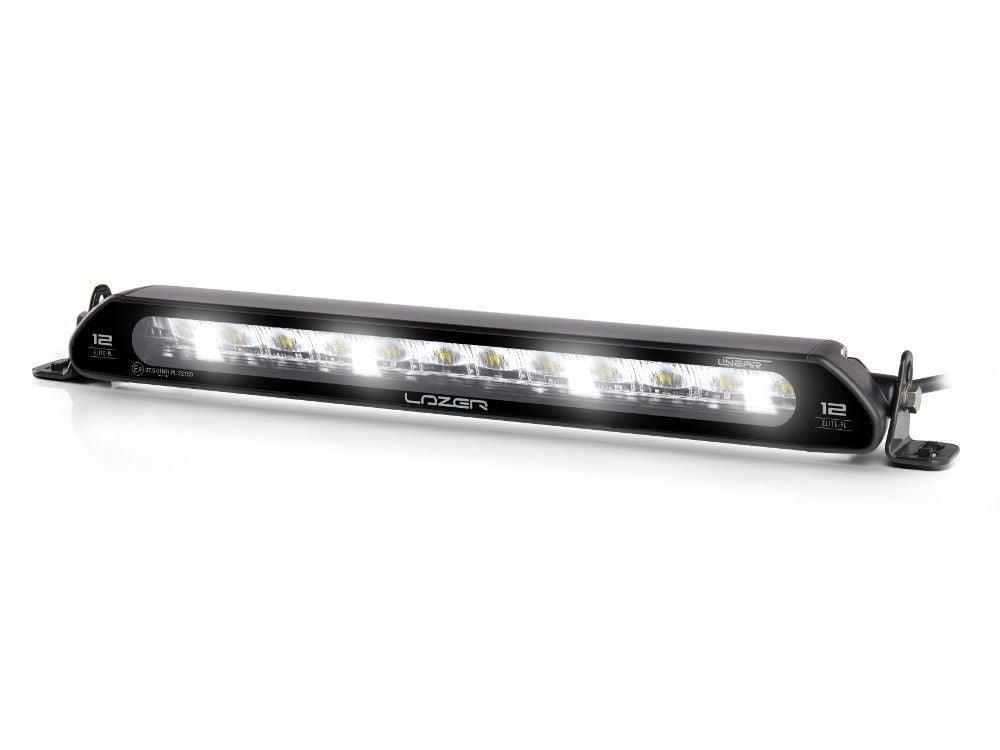

LINEAR-12 ELITE WITH POSITION LIGHT

Regular price $615.00 AUD
Regular price Sale price $615.00 AUD
Sale Sold out
Shipping calculated at checkout.

Representing the very best in slimline auxiliary high beam driving lights, the Linear range utilises a combination of highly efficient 3W LEDs and vacuum-metallised wide optics to deliver a perfectly tuned beam pattern for everyday road use. Measuring just 40mm in height, the Linear range is an excellent solution when either space is limited or when looking for a discreet installation that’s most likely to get noticed at night-time.

The Linear range is available in a variety of sizes from the 232mm (9”) Linear-6 to the 1282mm (51”) Linear-48. With the exception of the range topping Linear-48, all Linear products are fully UNECE certified to Regulation 112 as Class B Driving lights (for on-road use). Elite level products are also available across Linear-6/12/18 product lines with these products boasting twice the light output compared to the equivalent Standard version. The Linear-12 Elite and Linear-18 Elite lights are also available with the option for integrated position light function providing added safety and styling benefits.

Despite the diminutive proportions of the Linear products, the LED light bars are packed full of advanced and innovative features to maximise performance and longevity. With the products designed, engineered and built in-house, at our UK facility, you can be fully assured of exceptional high-end product design, coupled with superior levels of illumination, all backed by our comprehensive 5-year warranty.

Linear products are especially well-suited to roof mount installations where the sleek, aero design of the aluminium housing eliminates nearly all wind noise, and the comparatively low up/down spread of light ensures no glare off the vehicle bonnet.

What's included:
- x1 Linear-12 Elite (with Position Light) LED Lamp

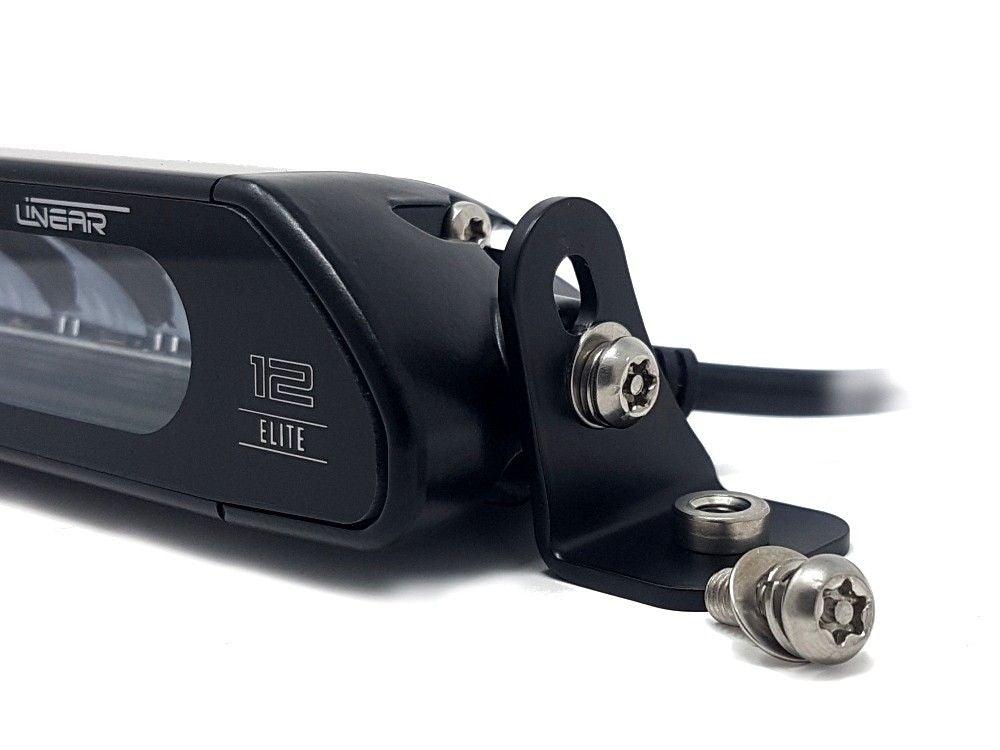

- x1 Anti-Theft Side Mount (1127k)
- x1 Installation Instructions

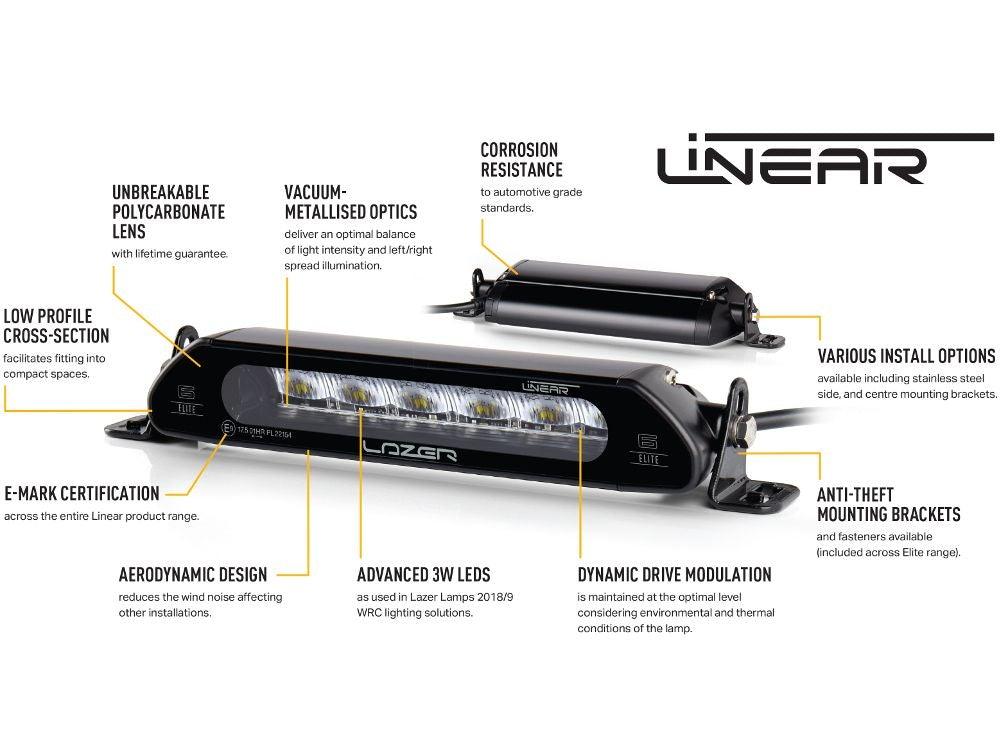

Product Features

Combination of highly efficient 3W ‘premium bin’ LEDs

Integrated position light function

5000K LED colour temperature and 80CRI maximises sharpness and definition

Vacuum-metallised optics deliver wide spread of light

Reduced up/down spread of light suits even low mounting positions, or roof mounting

Sleek, low profile design eases installation

Aero design virtually eliminates wind noise on roof installations

Flexible mounting options – anti-theft side mounting brackets included

Electronic thermal management system optimises light output to preserve longevity of the LEDs

Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

CAE optimised heatsink offers improved thermal dynamics

Over voltage protected

Reverse polarity protected

‘Unbreakable’ polycarbonate lens with hardcoat lacquer

UNECE approved Reg 112 (Class B Driving Light) for on-road high beam function

UNECE approved Reg 7 for on-road position light function

UNECE approved Reg 10

IP67 watertight

5 year warranty

Supplied with pre-wired male/female 2-pin Superseal connectors

Designed and manufactured in UK

Technical Infomation

Voltage Range (DC) 10-32V
LED Life 50,000 hours
Weight 800 gr
HIGH BEAM FUNCTION
Total Luminous Flux 8100 Lm
Total Driver 'FOV' Flux † 5767 Lm
Number of High Output LEDs 24
Power Consumption 84 Watts
Current Draw (at 14.4V) 5.8 Amps
Start-up Time * 100ms
CERTIFICATION
High Beam ECE R112
ECE Reference 37.5
Position Light ECE R7

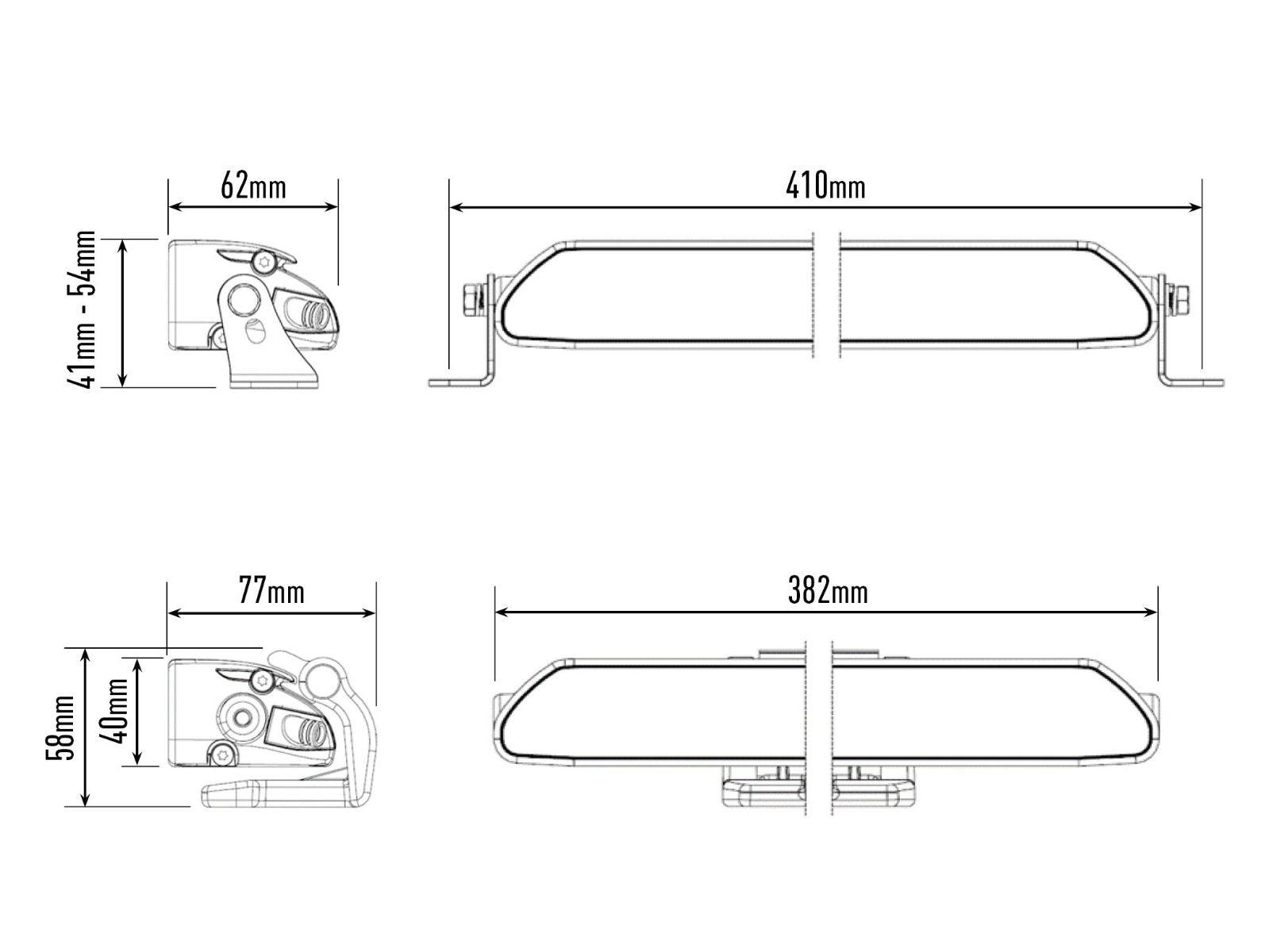

DIMENSIONS
Width 382 mm
Depth 62 mm
Height 40 mm

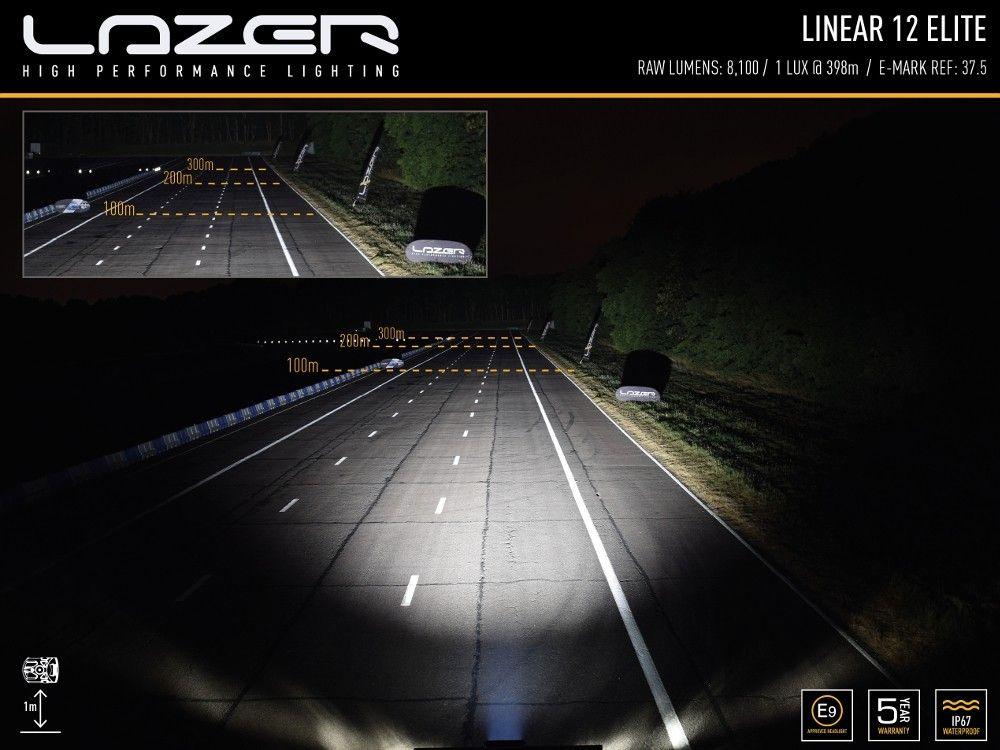

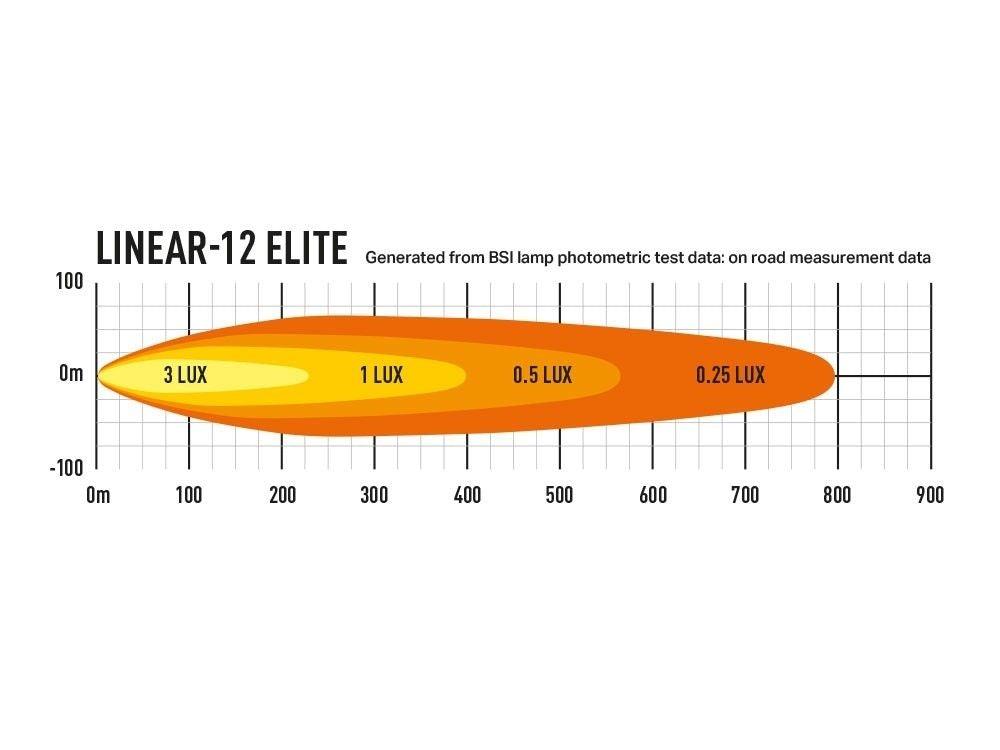

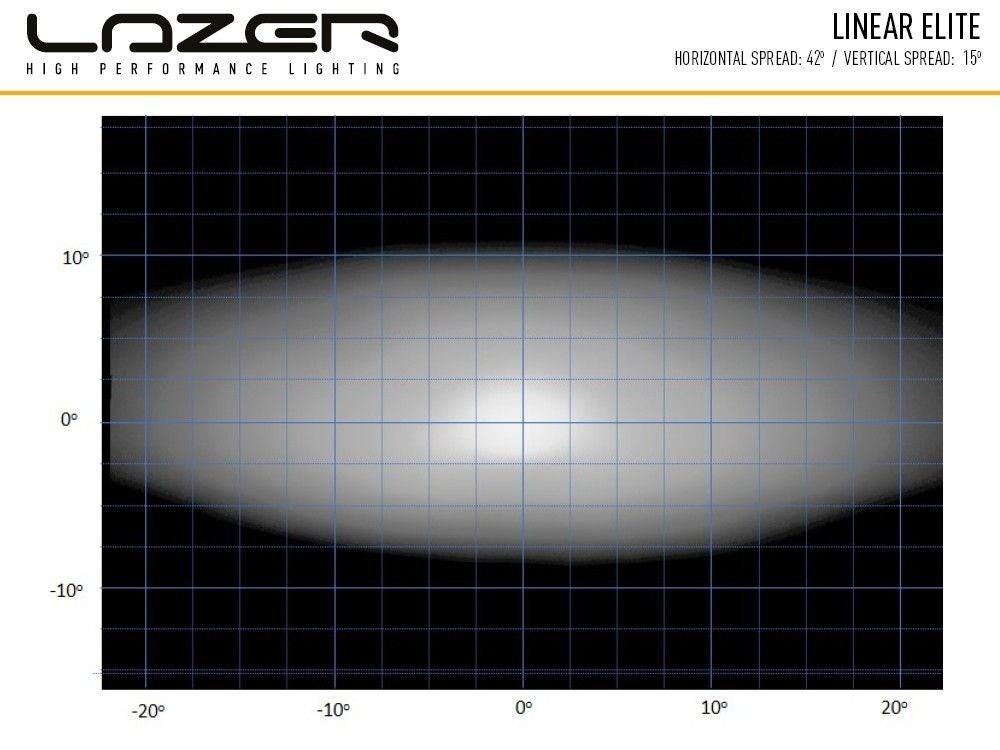

PHOTOMETRIC DATA
Horizontal Beam Angle  42 Degrees
0.25 lx Line 796 metres
0.5 lx Line 563 metres
1 lx Line 398 metres
3 lx Line 230 metres

* 'Start-up time' is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance.

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
