Adrian Stratford Motorsport

ST2 EVOLUTION

Regular price $221.00 AUD
Regular price Sale price $221.00 AUD
Sale Sold out
Shipping calculated at checkout.

The ST / T Evolution range of products feature highly efficient, premium ‘bin’ 11W LEDs in combination with vacuum-metallised conical optics to deliver a powerful beam pattern with wide spread. This makes the products especially well-suited to rural and off-road applications. Incorporating the same electrical and product design across both ST and T lights, the former indicates lights that are UNECE certified to Regulation 112 as high beam driving lights, while the latter indicating the larger light bars not certified and intended for off-road use only operated via an independent switch.

Available in sizes ranging from the 124mm (5”) ST2 to the 1164mm (46”) T28, these are LED light bars benefitting from huge versatility, having been adopted across a wide range of different applications and vehicle types, since the products were first launched in 2010. Since then, the range has been re-engineered and re-designed incorporating the latest and best technology alongside a more contemporary, seamless, low profile design making them easier to install, more resistant to dirt, snow and ice accumulations and with styling guaranteed to complement and enhance the appearance of modern vehicles.

Superior lighting performance is delivered by the high power 11W LEDs, alongside advanced electronic design, combined with sophisticated thermal management systems and ultra-reflective vacuum-metallised reflectors to harness the maximum amount of light where you need it: on the road or trail ahead. Like all Lazer products, the LEDs are carefully selected at 5000k colour temperature to maximise sharpness and definition of your surroundings.

Performance aside, the ST / T Evolution LED light bars are built to last backed by a comprehensive 5 year warranty. Designed, engineered and manufactured in-house, in the UK, there’s no compromise when it comes to build quality, ensuring the lights perform as well as they look and function for years to come.

What's included:

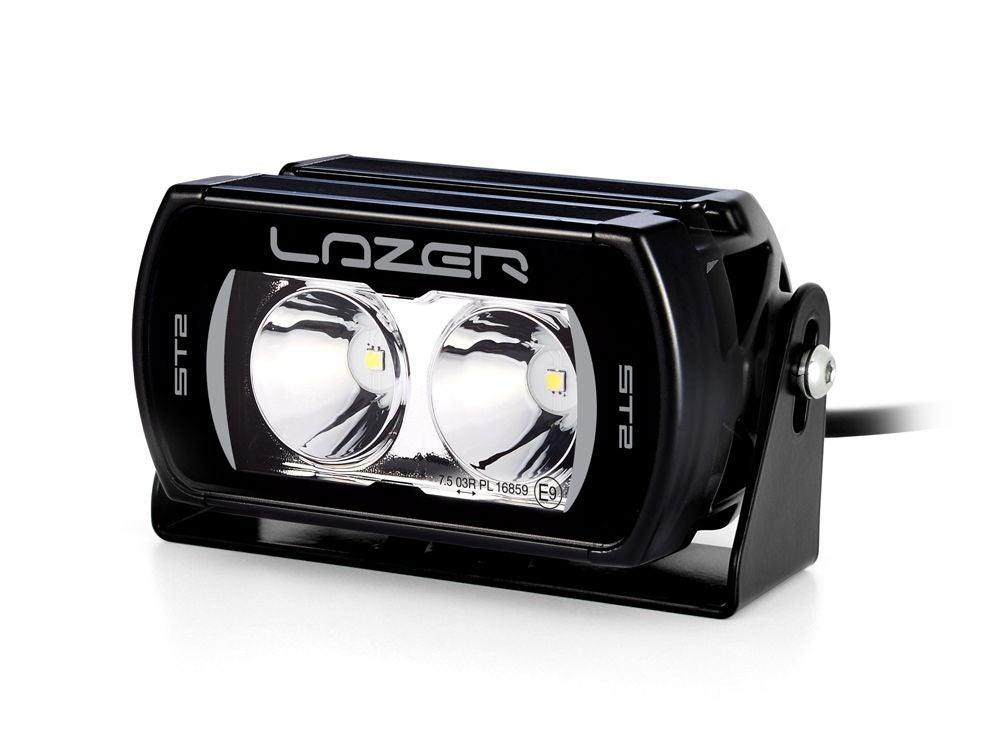

- x1 ST2 Evolution LED Spotlight
- x1 U-Shaped Bracket (1122k)
- x1 Installation Instructions

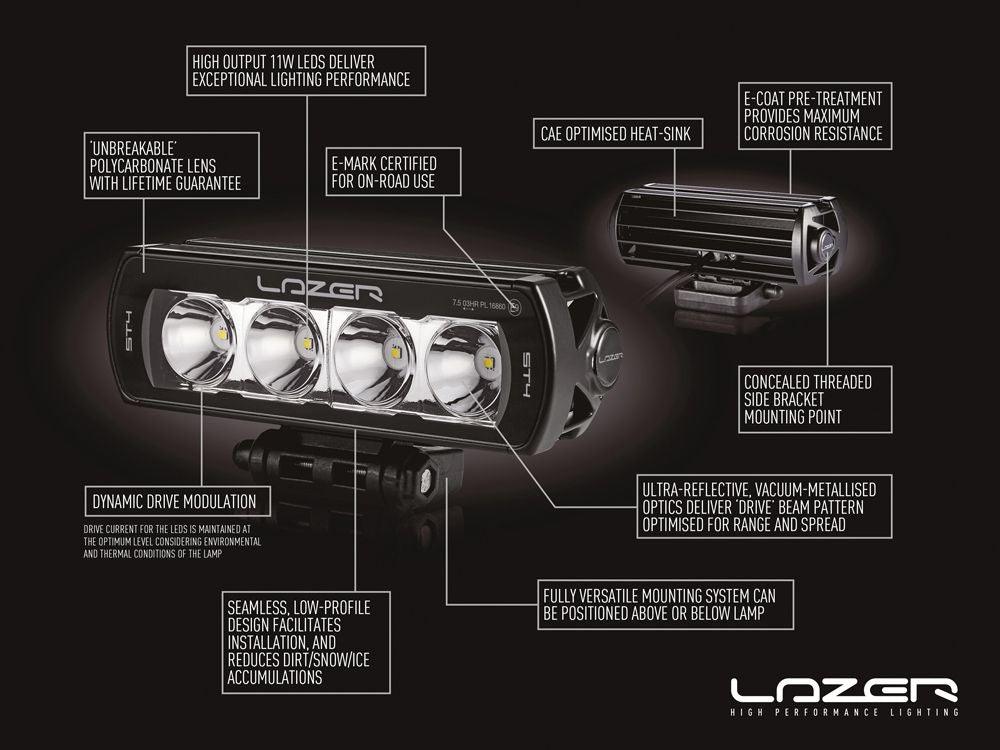

PRODUCT FEATURES

High density, premium ‘bin’ 11W LED technology

5000K LED colour temperature and 80CRI maximises sharpness and definition

Ultra-reflective, vacuum-metallised conical optics deliver excellent spread

Seamless, low profile design facilitates installation and avoids dirt/ice accumulation.

Includes versatile ‘Centre Mount’ mounting system plus side mounting brackets

Electronic thermal management system optimises light output to preserve longevity of the LEDs

Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

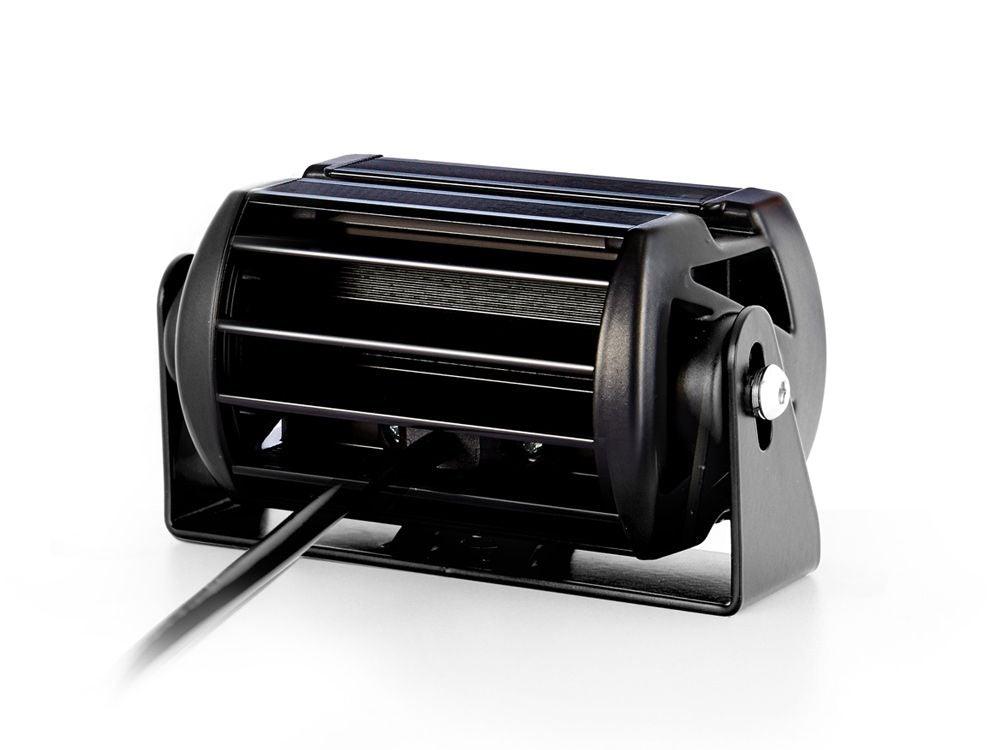

CAE optimised heatsink offers improved thermal dynamics

Over voltage protected

Reverse polarity protected

‘Unbreakable’ polycarbonate lens with hardcoat lacquer

IP67 watertight

5 year warranty

Supplied with pre-wired male/female 2-pin deutsch connectors

Designed and manufactured in UK

TECHNICAL SPECIFICATIONS

Voltage Range (DC) 10-32V
LED Life 50,000 hours
Weight 430 gr
HIGH BEAM FUNCTION
Total Luminous Flux 2068 Lm
Total Driver 'FOV' Flux † 1245 Lm
Colour Temperature 5000K
Number of High Output LEDs 2
Power Consumption 23 Watts
Current Draw (at 14.4V) 1.6 Amps
Start-up Time * 100ms
CERTIFICATION
High Beam ECE R112
ECE Reference 7.5

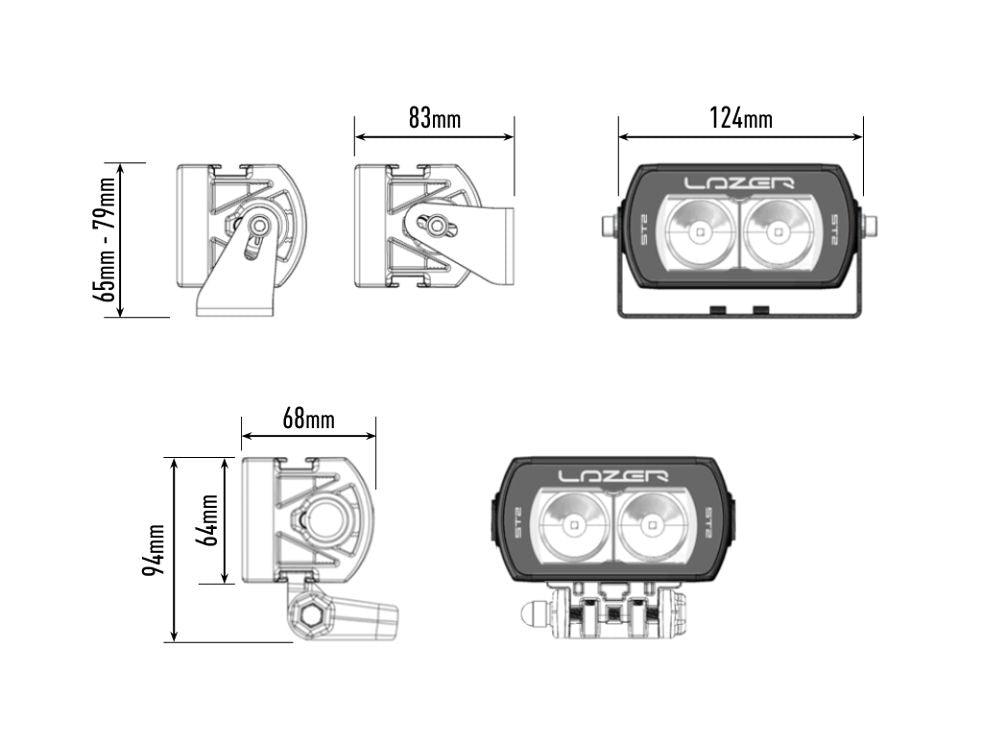

DIMENSIONS
Width 124 mm
Depth 68 mm
Height 64 mm

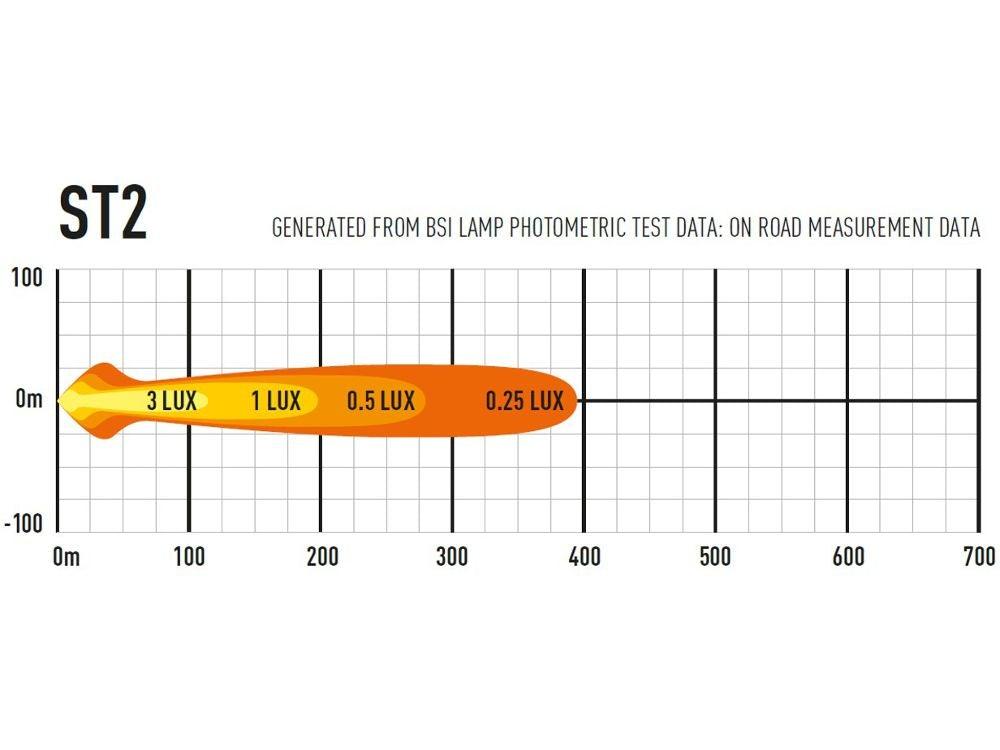

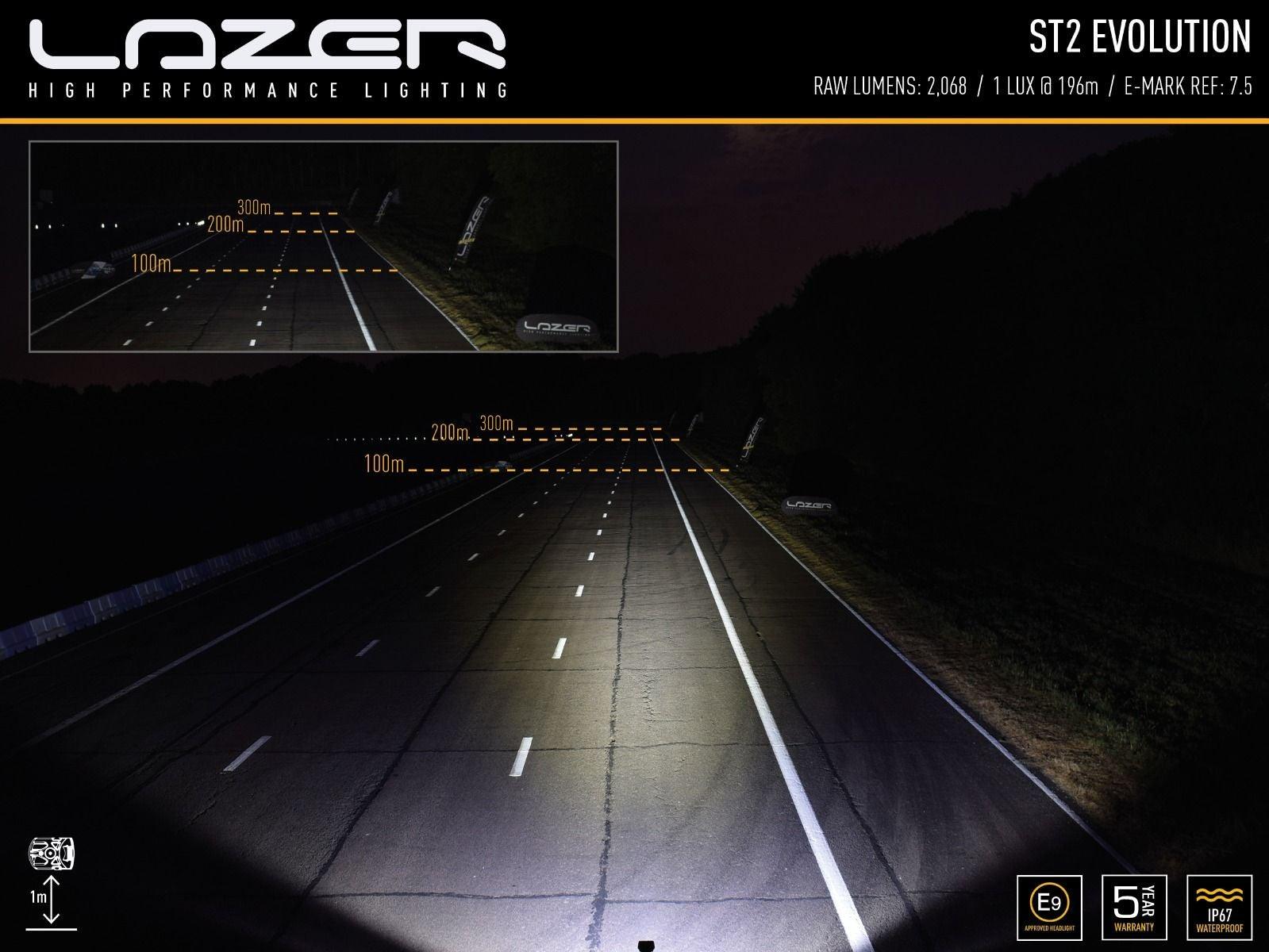

PHOTOMETRIC DATA

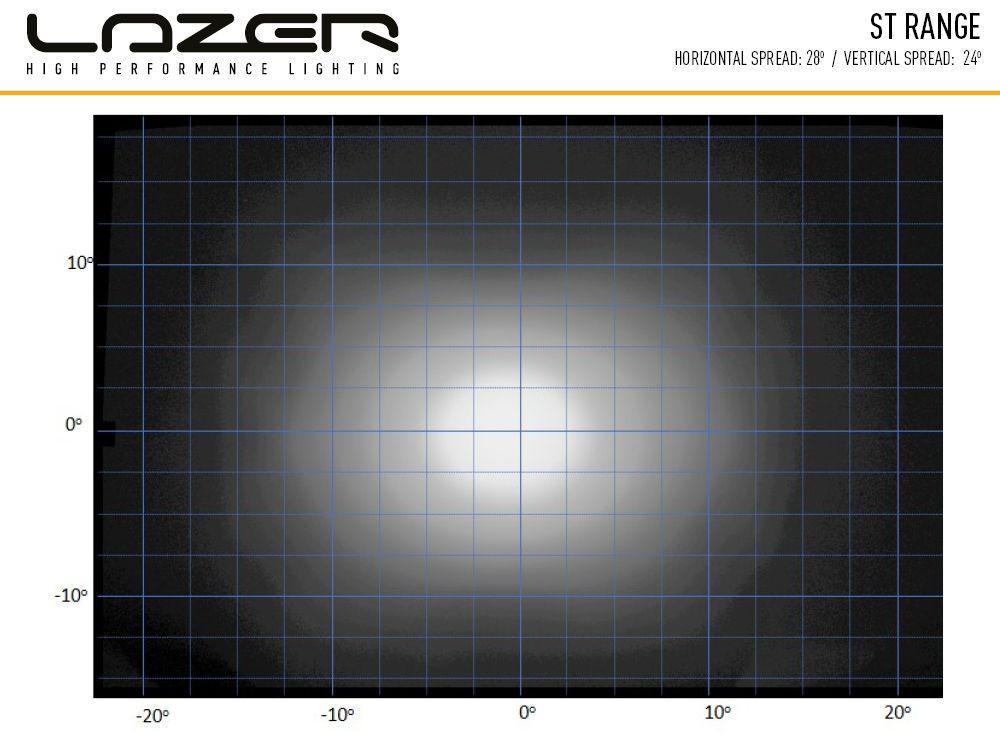

Horizontal Beam Angle 28 deg / 90 deg
0.25 lx Line 393 metres
0.5 lx Line 278 metres
1 lx Line 196 metres
3 lx Line 113 metres

* 'Start-up time' is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance.
