Adrian Stratford Motorsport

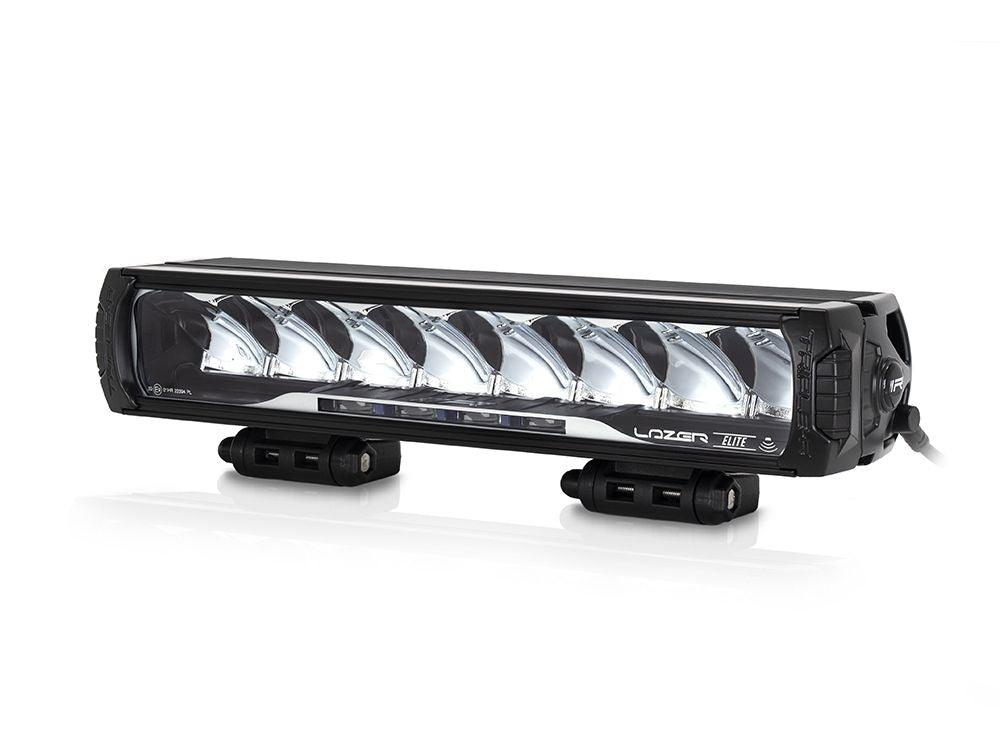

TRIPLE-R 1000 WITH I-LBA

Regular price $1,080.00 AUD
Regular price Sale price $1,080.00 AUD
Sale Sold out
Shipping calculated at checkout.

A world first, utilising patent-pending technology, the Triple-R 1000 Elite with Intelligent Low Beam Assist redefines the performance and functionality of auxiliary LED driving lights. A combination of the latest high-efficiency LEDs delivers a finely-tuned beam pattern, optimised for road use, that is simply unrivalled considering the lamps size. Additionally, through the adoption of 4 photoelectric sensors embedded within the driving light, when the high beam light is turned off the lamp enters a Low Beam Assist mode, which maintains additional levels of illumination in zones where there is confirmed no oncoming vehicles or obstacles.

Incorporating an arrangement of 26 LEDs, each lamp produces an incredible 11,068 raw lumen, which on the one hand deliver exceptional distance illumination with 1 lux at 681m, and on the other 44 degrees of left/right spread for our safest and most relaxing night drive experience. With the Intelligent Low Beam Assist mode activated, the central optics (delivering the distance illumination) are deactivated when the standard high beams are turned off. Superior levels of visibility at the side of the road in the short/mid-range are maintained as the lamp monitors progress of oncoming traffic. At the appropriate point additional illumination at either side of the road is deactivated to avoid disturbance to oncoming vehicles. Once the vehicle has passed, the lamp automatically returns to Low Beam Assist mode, (assuming no additional vehicles or obstacles are subsequently detected ahead), or returns to operating as a high beam driving light if activated (either manually or if part of any vehicle’s auto-headlights function).

Each sensor within the lamp monitors road conditions over 30x per second, for performance and functionality which feels safe and reliable. Continuous recalibration of these sensors ensures that the lamp responds to changing environmental conditions while in use; be that changing weather conditions, or the lamp getting obstructed by dirt, dust, snow etc. In Low Beam Assist mode, the lamp also responds to other light emitting objects ahead of the driver including: medium/large road signs, street lighting, and other reflective obstacles. A carefully selected delay on the reactivation of the Low Beam Assist mode prevents any potentially distracting ‘flashing’ on/off of the additional lighting at the sides of the road, while the addition of a secondary switch, on the supplied wiring kit, allows for the Low Beam Assist function to be temporarily disabled if specific circumstances demand.



To learn more about Low Beam Assist products and FAQs, please click here.

What's included:
- x1 Triple-R 1000 with i-LBA LED Lamp
- x2 Centre Mount (1114k)

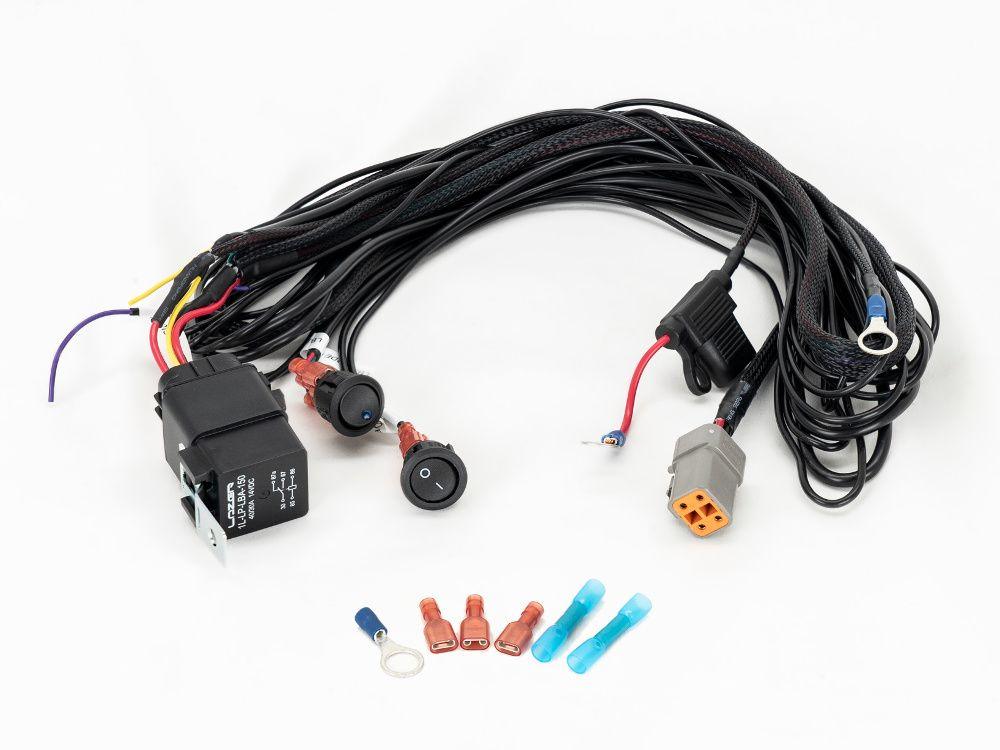

- x1 Single-Lamp 'Low Beam Assist' Wiring Kit (1L-LP-LBA-150)
- x1 Installation Instructions

A world first, utilising patent-pending technology, the Triple-R 1000 Elite with Intelligent Low Beam Assist redefines the performance and functionality of auxiliary LED driving lights. A combination of the latest high-efficiency LEDs delivers a finely-tuned beam pattern, optimised for road use, that is simply unrivalled considering the lamps size. Additionally, through the adoption of 4 photoelectric sensors embedded within the driving light, when the high beam light is turned off the lamp enters a Low Beam Assist mode, which maintains additional levels of illumination in zones where there is confirmed no oncoming vehicles or obstacles.

Incorporating an arrangement of 26 LEDs, each lamp produces an incredible 11,068 raw lumen, which on the one hand deliver exceptional distance illumination with 1 lux at 681m, and on the other 44 degrees of left/right spread for our safest and most relaxing night drive experience. With the Intelligent Low Beam Assist mode activated, the central optics (delivering the distance illumination) are deactivated when the standard high beams are turned off. Superior levels of visibility at the side of the road in the short/mid-range are maintained as the lamp monitors progress of oncoming traffic. At the appropriate point additional illumination at either side of the road is deactivated to avoid disturbance to oncoming vehicles. Once the vehicle has passed, the lamp automatically returns to Low Beam Assist mode, (assuming no additional vehicles or obstacles are subsequently detected ahead), or returns to operating as a high beam driving light if activated (either manually or if part of any vehicle’s auto-headlights function).

Each sensor within the lamp monitors road conditions over 30x per second, for performance and functionality which feels safe and reliable. Continuous recalibration of these sensors ensures that the lamp responds to changing environmental conditions while in use; be that changing weather conditions, or the lamp getting obstructed by dirt, dust, snow etc. In Low Beam Assist mode, the lamp also responds to other light emitting objects ahead of the driver including: medium/large road signs, street lighting, and other reflective obstacles. A carefully selected delay on the reactivation of the Low Beam Assist mode prevents any potentially distracting ‘flashing’ on/off of the additional lighting at the sides of the road, while the addition of a secondary switch, on the supplied wiring kit, allows for the Low Beam Assist function to be temporarily disabled if specific circumstances demand.

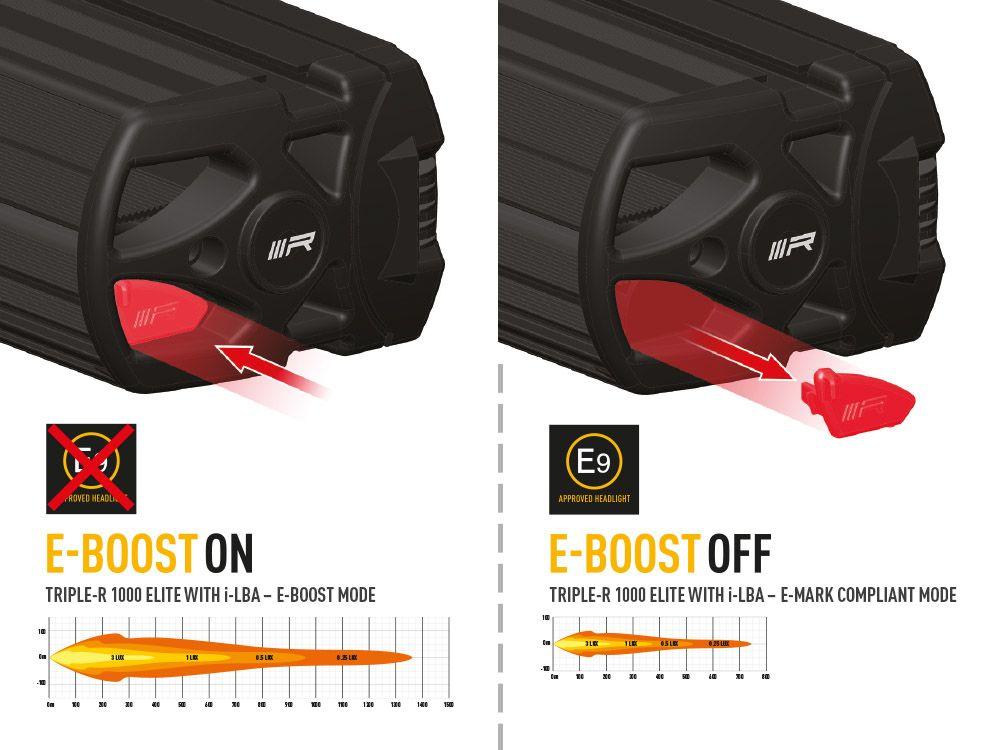

The lamp is ECE certified to Regulation 112 as a high beam driving light, and through dual-output E-Boost technology the light output can be increased above ECE Reg112 limits when off-road, or where specific country-law allows. Low Beam Assist is a new, patent-pending technology, as such there are no laws prescribing its use. The forementioned secondary switch allows deactivation of the function where the laws of the country specifically don’t allow use.

Like all Lazer products, the Triple-R 1000 Elite with Low Beam Assist has been designed and manufactured in the UK to exacting standards, both in terms of performance, reliability, and appearance. Boasting a contemporary design, with refined highlights, this is a product that stands out and impresses on any vehicle, at anytime of day or night. Backed up by our comprehensive 5-year warranty, and Lifetime Lens Guarantee, this is a product you can have confidence will last for years in even the harshest environments.

To learn more about Low Beam Assist products and FAQs, please click here.

What's included:
- x1 Triple-R 1000 with i-LBA LED Lamp
- x2 Centre Mount (1114k)
- x1 Single-Lamp 'Low Beam Assist' Wiring Kit (1L-LP-LBA-150)
- x1 Installation Instructions

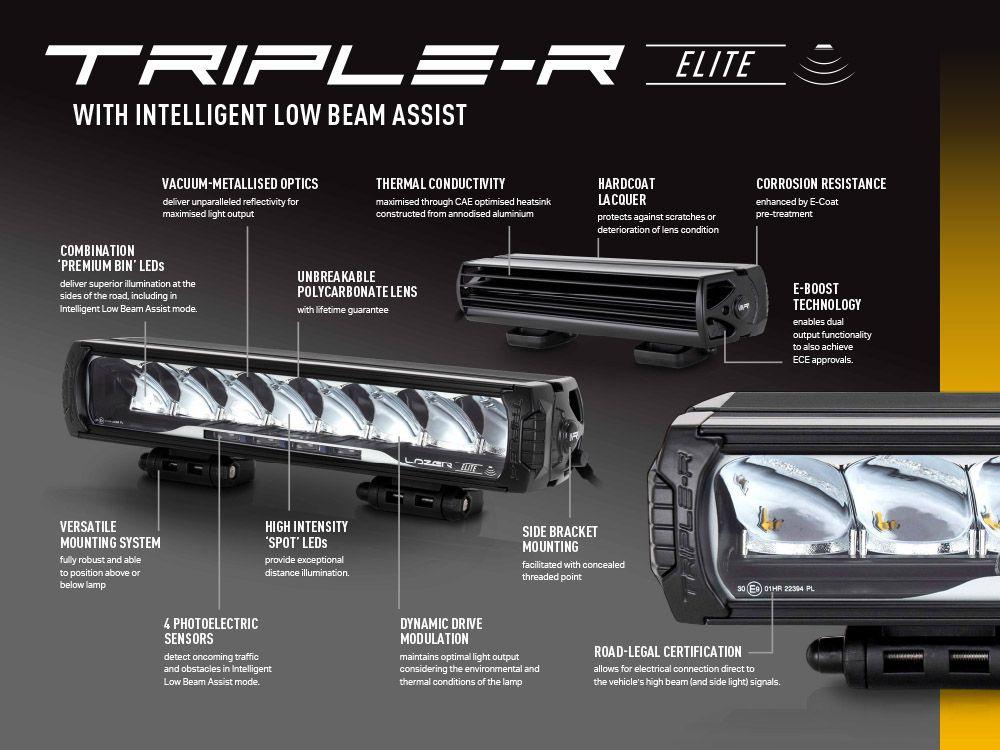

PRODUCT FEATURES

Combination of 26 high efficiency LEDs deliver exceptional lighting performance

Ultra-reflective vacuum-metallised optics deliver perfectly tuned beam pattern for everyday road use

Low Beam Assist mode provides superior short/mid-range visibility

Integrated photoelectric sensors detect oncoming traffic and obstacles so that light output responds to surroundings in Low Beam Assist mode

5000K LED colour temperature and 80CRI maximises sharpness and definition

UNECE Reg 112 Class B Driving Light, approved for on-road high beam (E-Boost technology)

Contemporary lamp design

Supplied with Single-Lamp Wiring Kit

Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)

Electronic thermal management system optimises light output to preserve longevity of the LEDs

Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

CAE optimised heatsink offers improved thermal dynamics

Over voltage protected

Reverse polarity protected

‘Unbreakable’ polycarbonate lens with hardcoat lacquer

UNECE approved Reg 10

IP67 watertight

5-year warranty

Supplied with pre-wired male/female 2-pin Superseal connectors

Designed & manufactured in UK



TECHNICAL SPECIFICATIONS

  E-Boost E-Mark Mode
Voltage Range (DC) 10-32V 10-32V
LED Life 50,000 hrs 50,000 hrs
Weight 1.7 kg 1.7 kg
HIGH BEAM FUNCTION
Total Luminous Flux

11068 Lm

3423 Lm

Colour Temperature 5000k 5000k
Number of High Output LEDs 26 26
Power Consumption 95 Watts 32 Watts
Peak Current Draw (@10V) 9.5 Amps N/A
Current Draw (@14.4V) 6.6 Amps 2.3 Amps
Start-up Time * 100ms 100ms
CERTIFICATION
High Beam N/A ECE R112
E-Mark Ref N/A 30

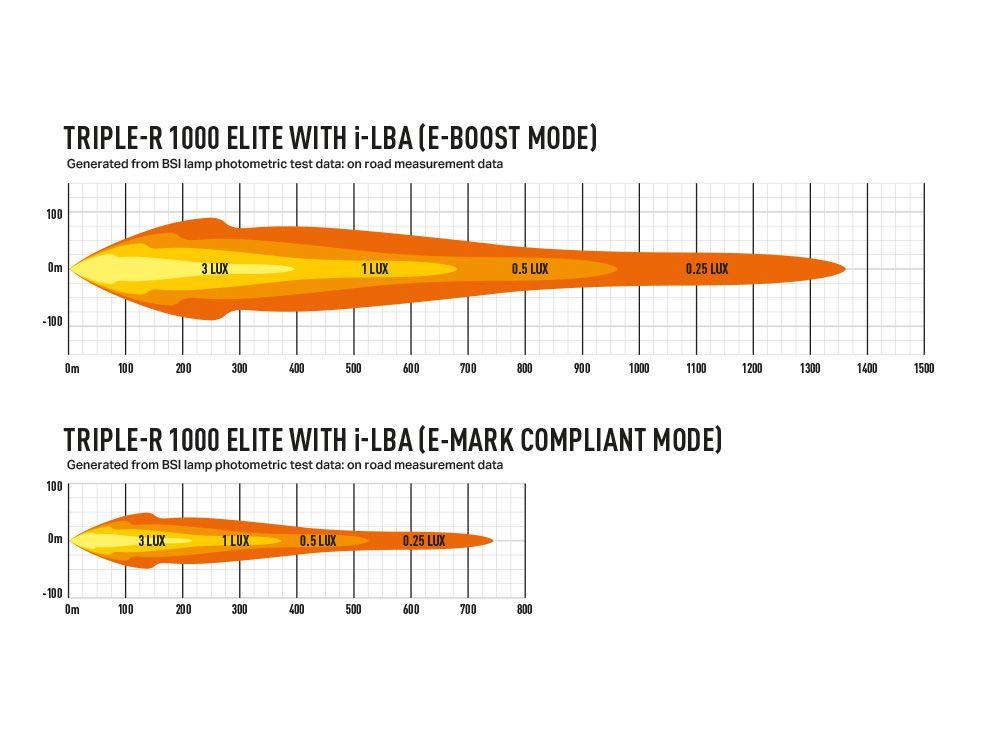

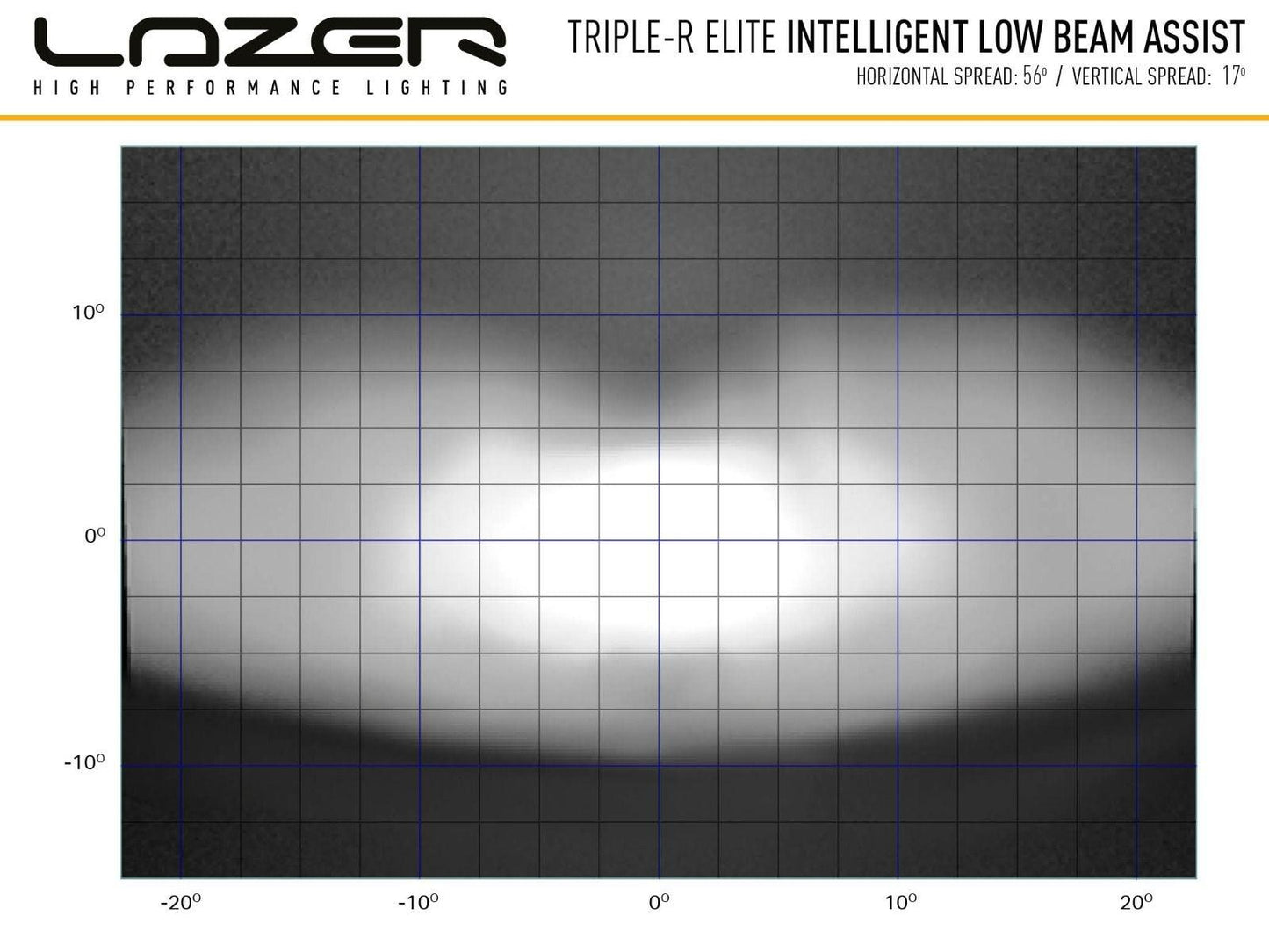

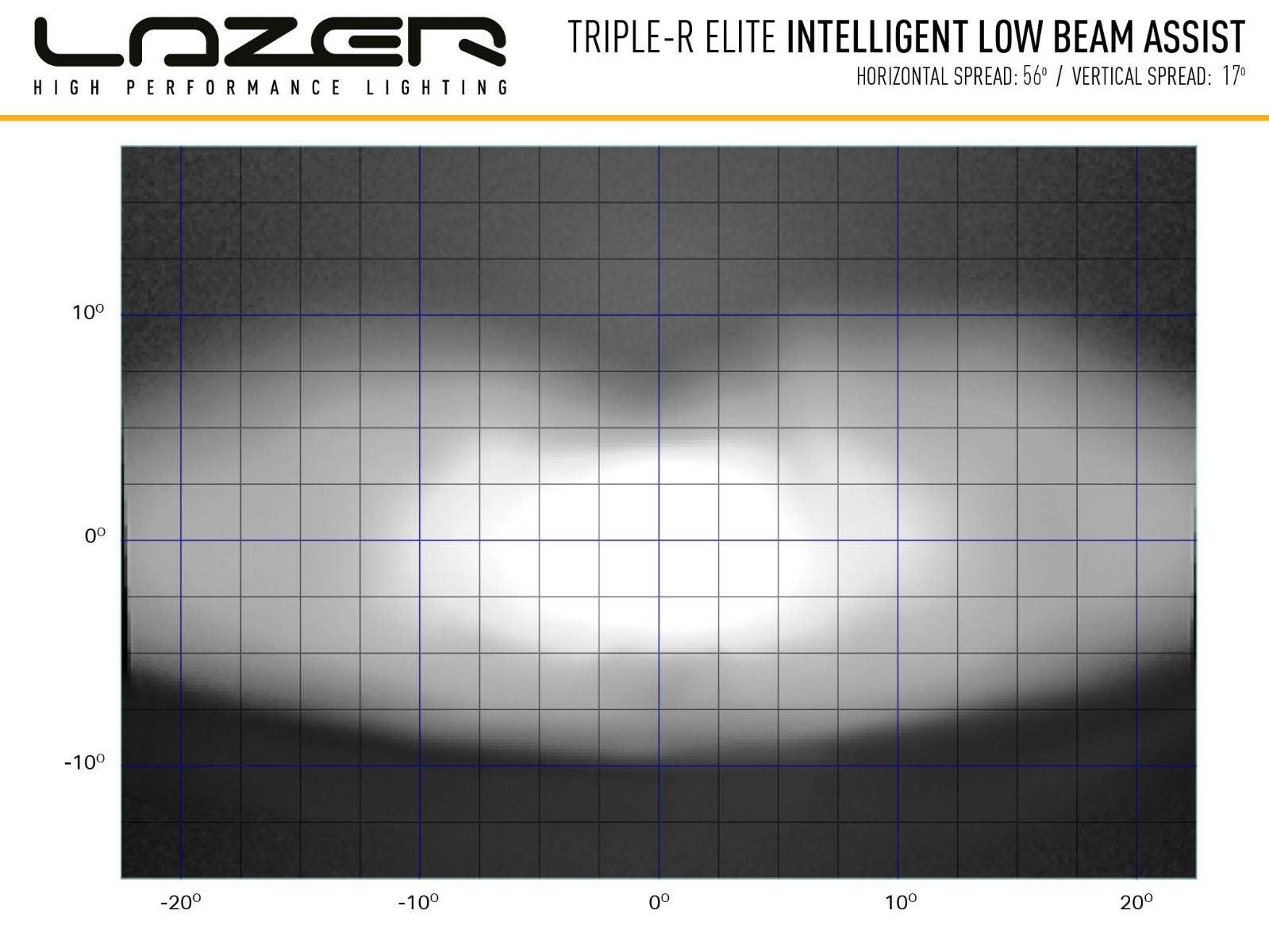

PHOTOMETRIC DATA
Horiz Beam Angle 56 Deg 56 Deg
0.25 lx Line 1362m 746m
0.5 lx Line 963m 527m
1 lx Line 681m 373m
3 lx Line 393m 215m
