Adrian Stratford Motorsport


Regular price $715.00 AUD
Regular price Sale price $715.00 AUD
Sale Sold out
Shipping calculated at checkout.

Weighing as little as 170g, and with a single unit capable of delivering usable light (1 lux) to 466m, the Carbon-2 is the ultimate motorsport lighting solution where space is at a premium. Available with a choice of three optics – Spot, Reeded (Horizontal) and Reeded (Vertical), the lights work either as multiple units used in combination for a personalised driving light package, or used individually as the ultimate corner lighting solution.

At its core, the lighting performance of the Carbon-2 is driven by ultra-reflective vacuum-metallised boost optics, combined with a pair of high intensity 11W LEDs. The Spot and Reeded lens options give flexibility to match the distribution of light to specific applications, with the Reeded lens option also available for lights mounted in a vertical orientation.

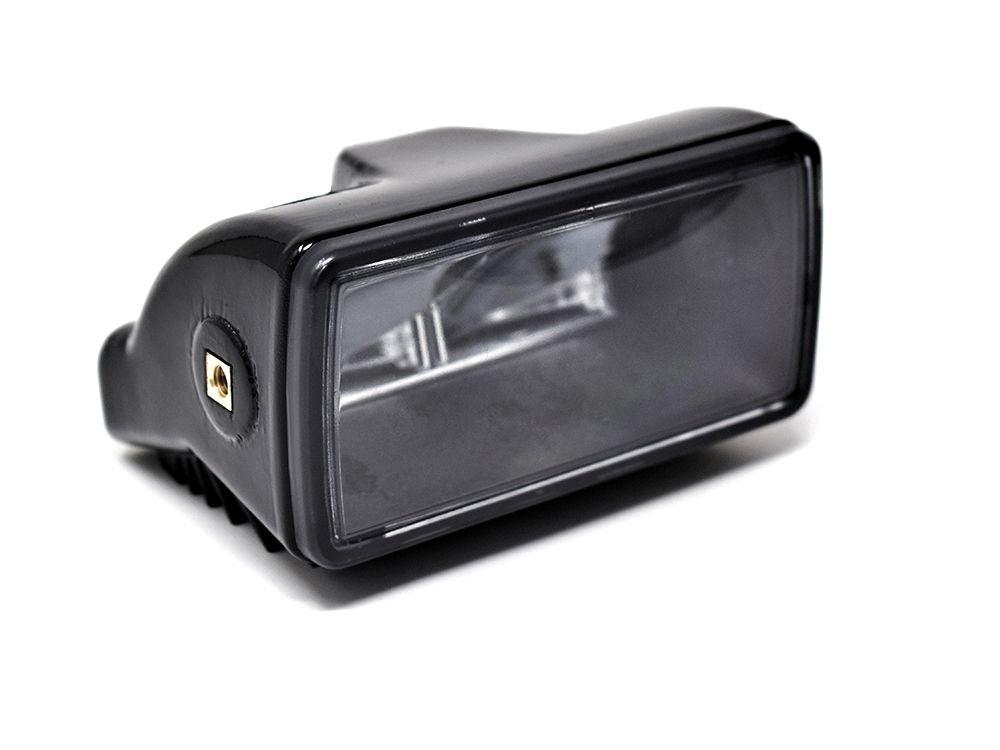

Lighting performance aside, it is through ground-breaking advances in material design and engineering that the Carbon Series really stands apart from all other lighting solutions. New for 2019/20, all Carbon-2 lamps are available constructed using either a “prepreg” carbon-fibre housing, or from a 3D printed Carbon-Fibre & Nylon composite material (CF-PA12). Prepreg carbon-fibre benefits from exceptional strength and rigidity ensuring the lamps longevity when exposed to harsh conditions and light-moderate impact. By contrast, the 3D print CF-PA12 material, finished with an automotive-grade gloss black paint, provides for a more cost-effective solution albeit one with lower overall strength.

Through extensive testing and feedback at the very highest levels of rally, track, and off-road motorsports, the colour temperature of the LEDs has been carefully selected to provide maximum definition and sharpness. The unique design of both the housing and internal electronics, which includes rear facing LEDs, provides greater light utilisation, reduced scatter, and a more homogenous light distribution.

Note - 3D printed lamps are approved to IP65 only.


Product Features

Ultra-lightweight, carbon-fibre or 3D print CF-PA12 material housing

Highly efficient high intensity 11W LED technology

Available in Spot or Reeded lens options; lamp can be mounted in a horizontal or vertical orientation

Carefully selected LED colour temperature maximises sharpness and definition

CAE optimised heatsink requires minimal airflow to maintain 100% light output

Electronic thermal management

Low profile design for improved aerodynamic performance

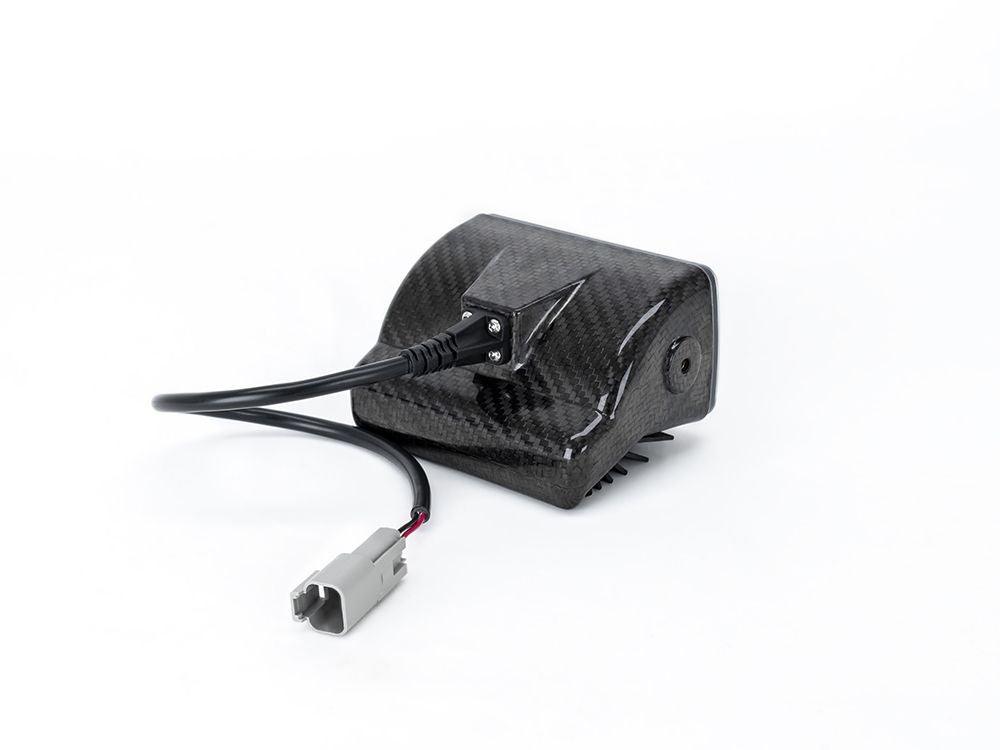

Supplied with loom and Deutsch DT04-2P Connector (male and female pre-wired)

IP65 watertight

5-year warranty

Designed & manufactured in Britain

Technical Infomation

Voltage Range (DC) 10-32V 10-32V
LED Life 50,000 hours 50,000 hours
Optical Efficiency 96% 96%
Weight 170 gr 170 gr
Total Luminous Flux 2255 Lm  2255 Lm
Colour Temperature 5000K 5000K
Number of High Output LEDs 2  2
Power Consumption 22 Watts 22 Watts
Current Draw (at 14.4V) 1.5 Amps  1.5 Amps

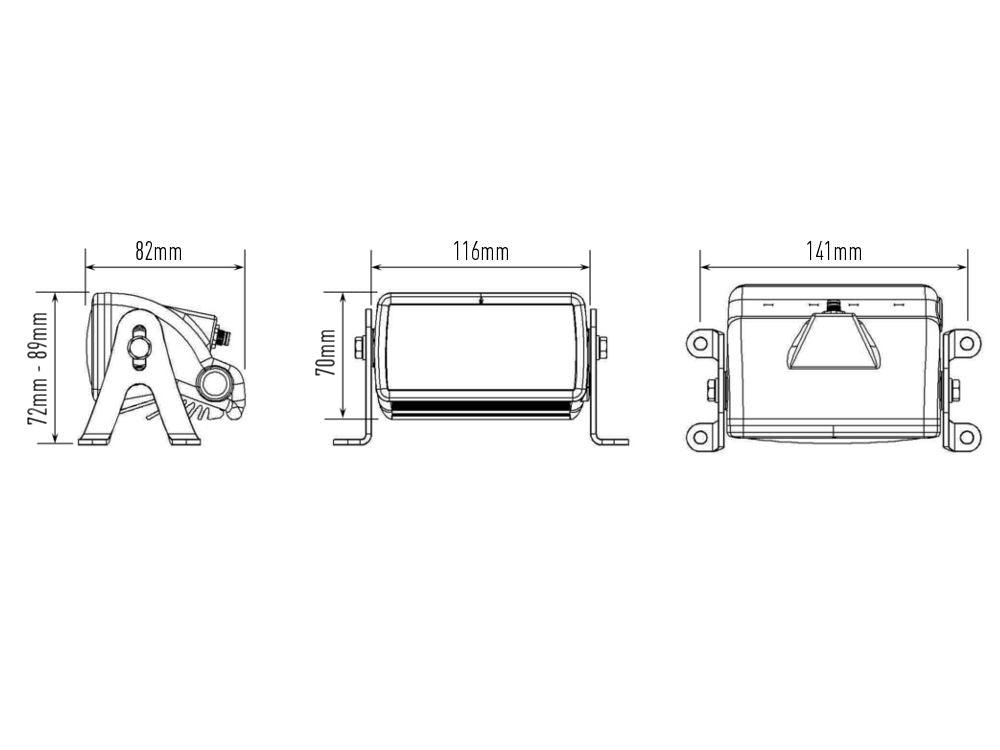

Width 116 mm 116 mm
Depth 84 mm 84 mm
Height 67 mm 67 mm

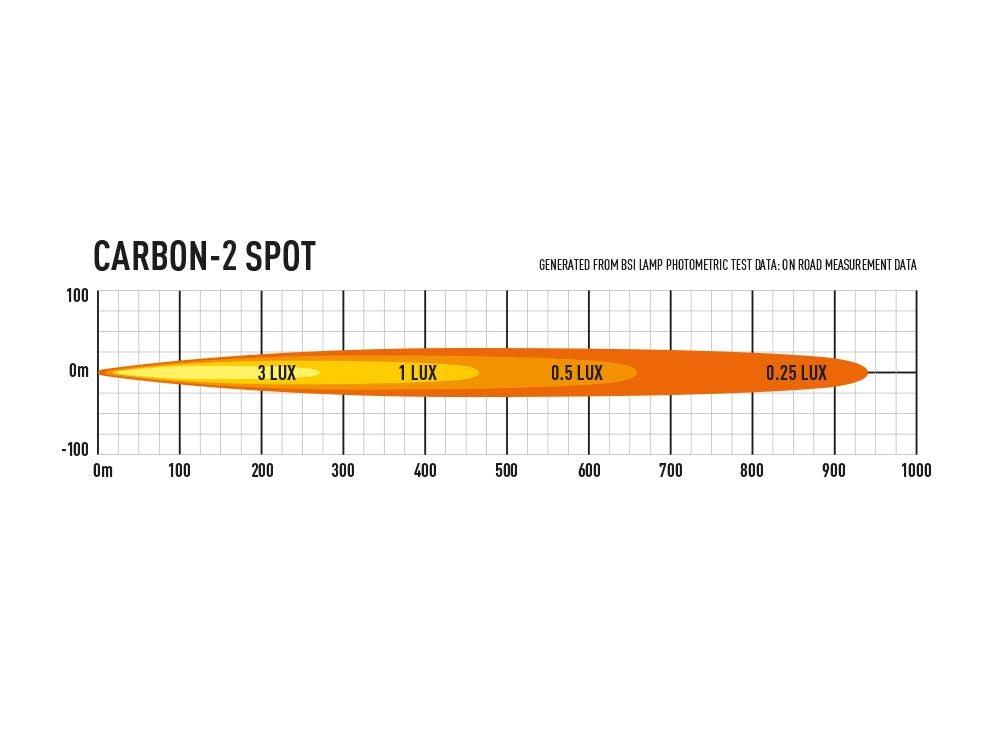

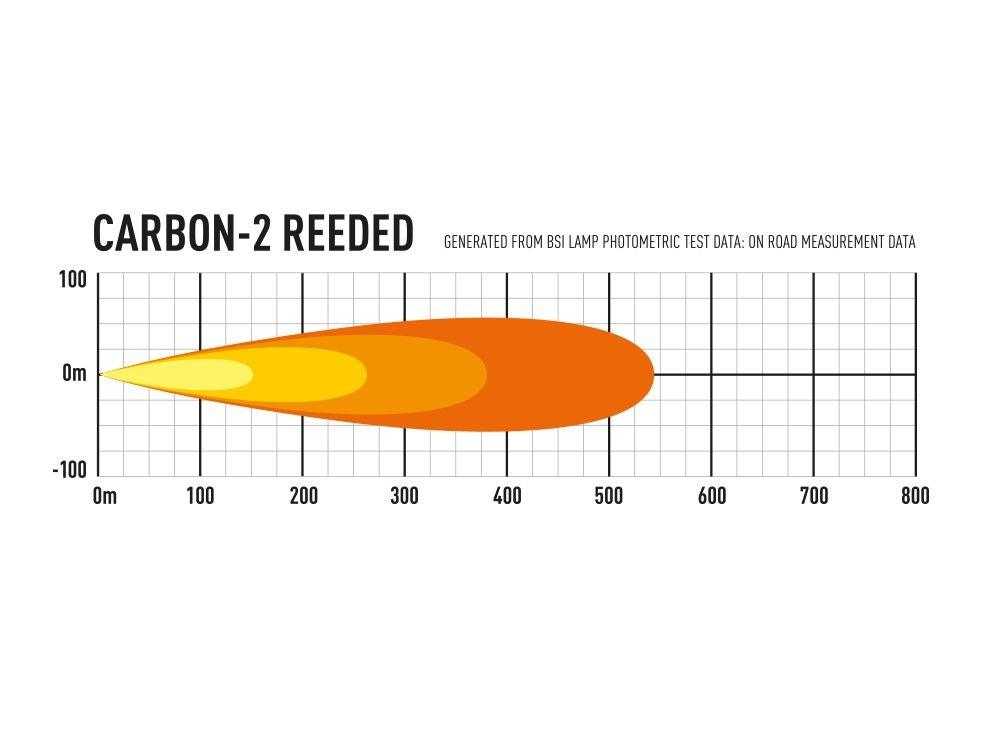

Horizontal Beam Angle 11 Degrees 20 Degrees
0.25 lx Line 933 metres 539 metres
0.5 lx Line 660 metres 382 metres
1 lx Line 466 metres 267 metres
3 lx Line 269 metres 150 metres
