Adrian Stratford Motorsport

FIESTA R5 4-WAY RALLY LAMP POD

Regular price $7,300.00 AUD
Regular price Sale price $7,300.00 AUD
Sale Sold out
Shipping calculated at checkout.
Lamp Pod Option

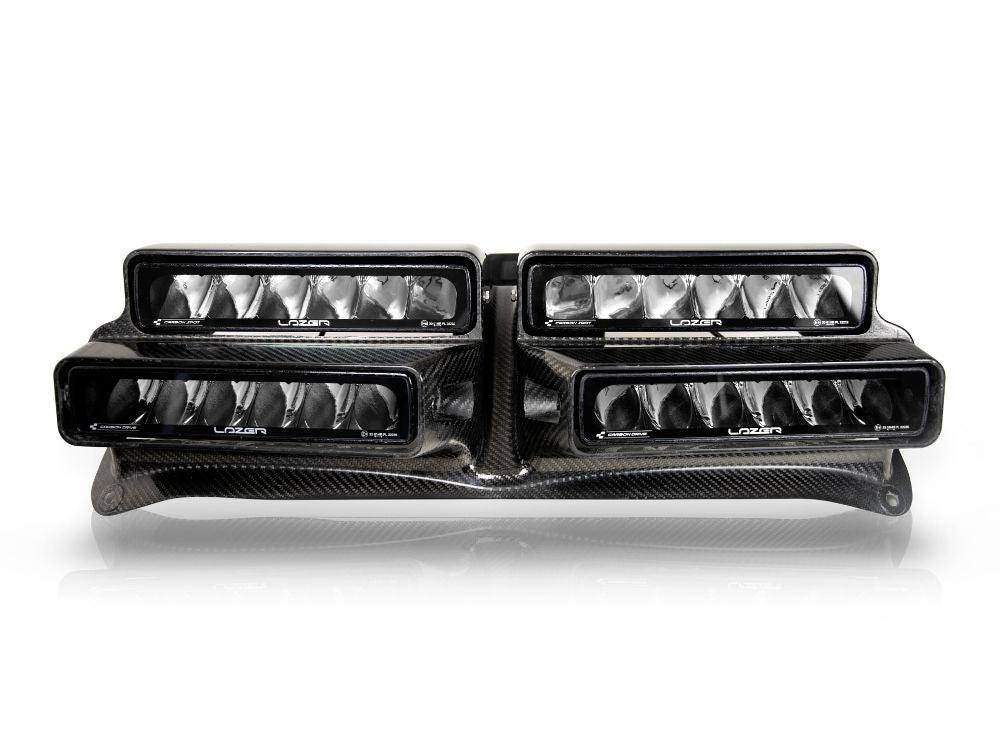

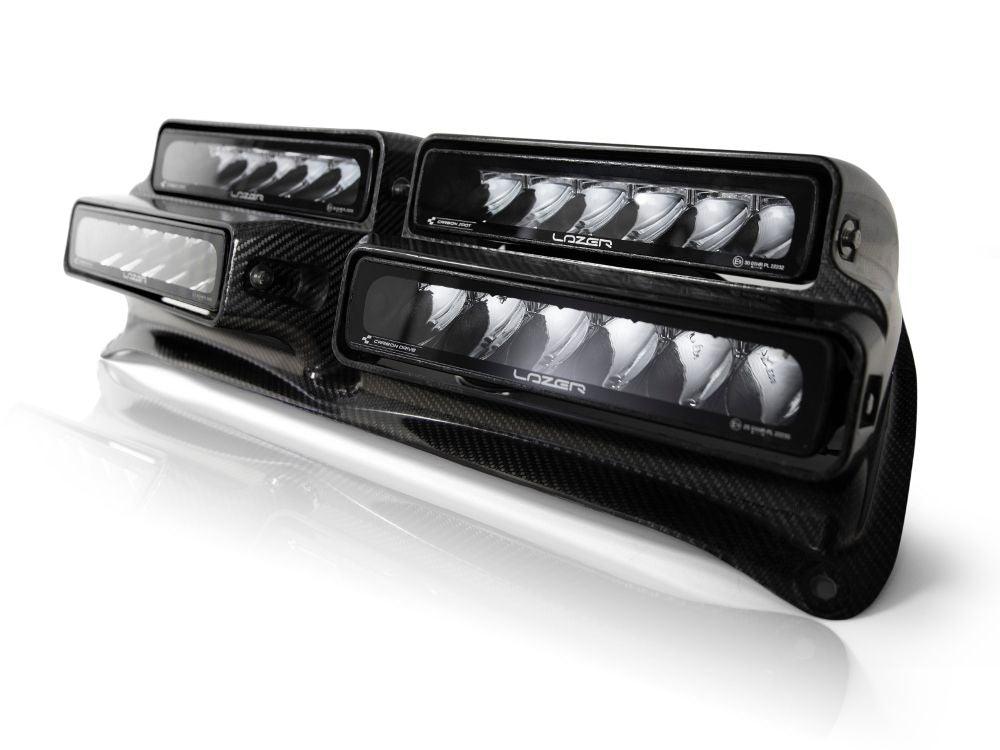

Taking rally car lighting solutions to the next level, the 4-way Rally Lamp Bonnet Pod from Lazer Lamps comprises 2x Carbon-6 Spot (3D Material) and 2x Carbon-6 Drive (3D Material) high performance LED driving lights, pre-mounted within an aerodynamic, lightweight Glass & Carbon-fibre composite pod, designed and engineered to match the shape of the Fiesta R5 MKII.

With the complete system weighing just 3kg, the 4-way Bonnet Pod affords substantial weight saving gains over traditional lamp pods, while delivering lighting performance unrivalled considering the lamps’ size and low power consumption. Moreover, the products are designed, engineered, and manufactured in the UK to the most exacting standards, and benefit from input received from the very highest levels of professional rally motorsport.

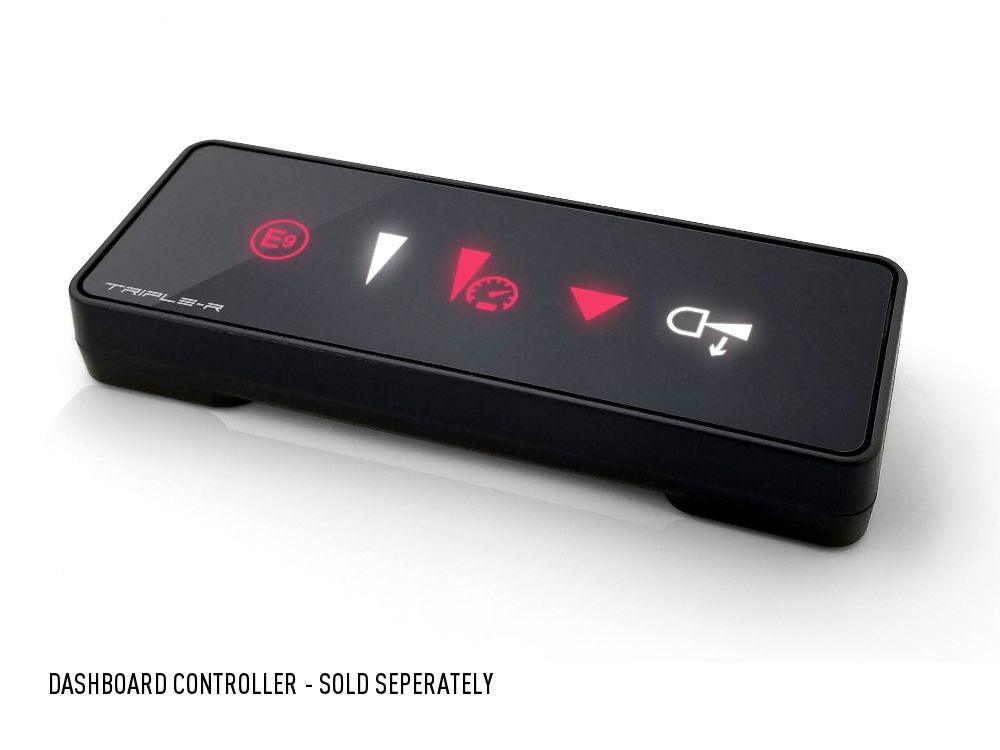

The Carbon-6 Spots provide for exceptional long-range visibility, complimented by the Carbon-6 Drives which deliver a spread of light crucial to having the confidence to drive faster, and safer. Constructed using 3D printed Carbon-Fibre & Nylon composite material (CF-PA12), the lamps all profit from E-mark certification, a mode enabled via a touchscreen Dashboard Controller. Additionally, the Dashboard Controller allows for operation of the following functions: E-Boost Mode, Adaptive Mode, Fog Mode, and Corner Lighting (requires LH/RH Corner Pod system).

Without the Dashboard Controller, the lamps are programmed to just operate in E-Boost mode. Utilising PWM signals to initiate the different functions, Lazer Lamps is able to provide the required information to control some/all of the different functions without use of the Dashboard Controller, if preferred.

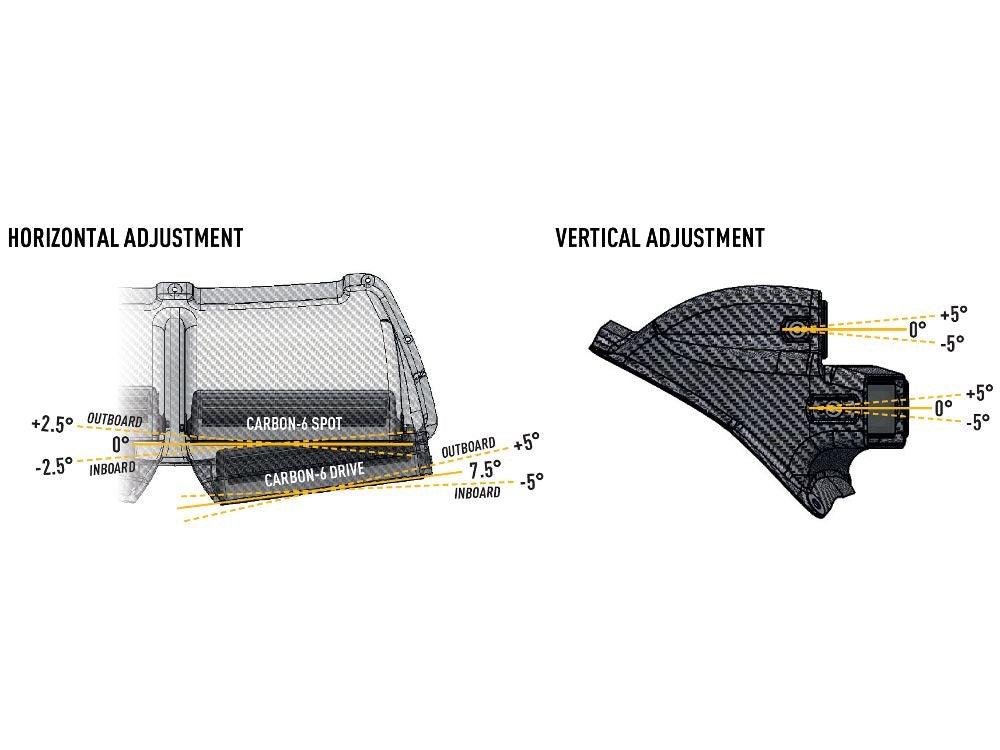

The bonnet pod, made from carbon-fibre with glass laminate layers (to ensure compliance with some FIA regulated series), comes with the lights pre-mounted. The pod allows for quick and easy vertical adjustment of the lights +/-5deg, alongside <2deg outboard adjustment permits more left/right spread of light.

The 4-Way Rally Lamp Bonnet Pod is recommended for use with Linear-6 Elite corner lights, mounted in a horizontal orientation. A bespoke pod exists for Fiesta R5 customers, for all other customers it is recommended to mount the corner lights with our Aluminium Side Bracket Kit. Where the requirement is for corner lights mounted in a vertical orientation, we would recommend our ST4 Evolution high performance spotlights.

What's included:
- x1 Carbon rally pod
- x2 Carbon-6 Drive and 2x Carbon-6 Spot (Supplied assembled)

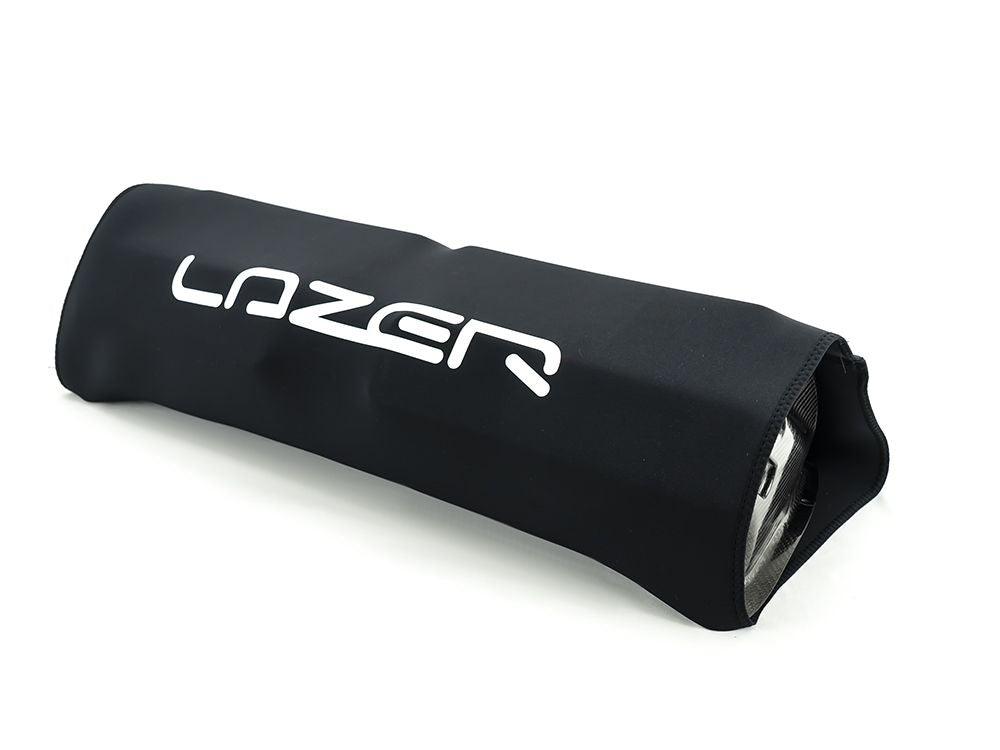

- x1 Neoprene Pod Cover
- x1 Installation Instructions

Product Features

Pre-mounted 4x Carbon-6 ‘Spot’ and ‘Drive’ high performance driving lights

Ultra-lightweight carbon-fibre with glass laminate bonnet pod

Optimised for Ford Fiesta MKII

4 different lighting modes operated via Dashboard Controller

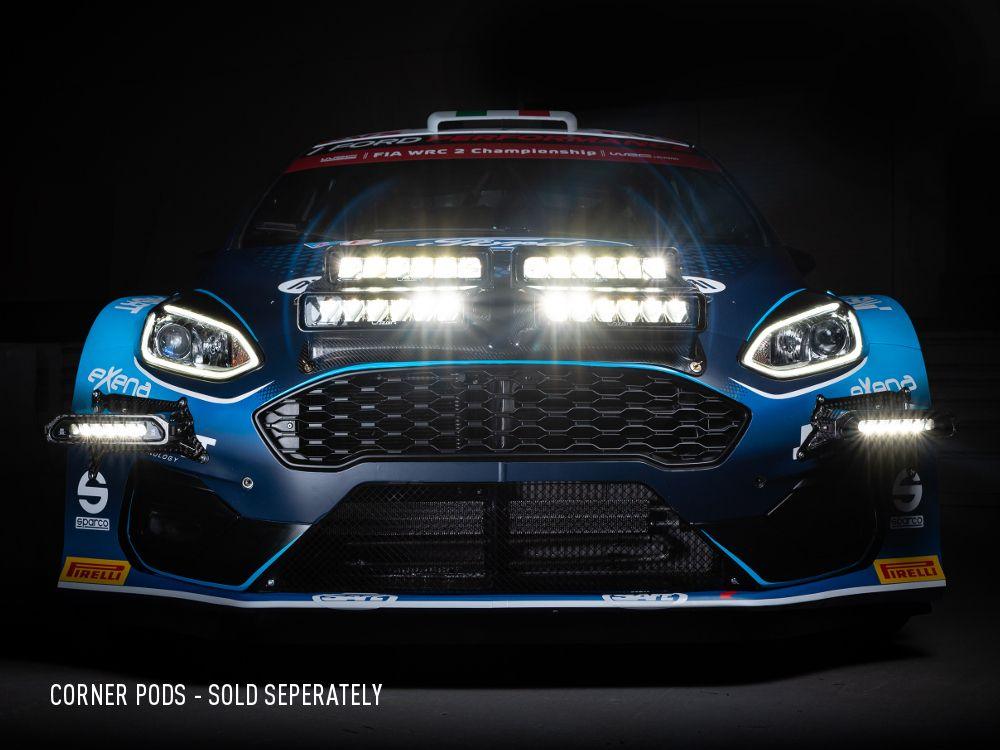

Compatible with LH/RH Corner Pods

Road-legal in accordance with FIA regulations (for some rally series)

Low profile design for improved aerodynamic performance

Supplied with Neoprene impact cover

Bonnet fixtures not included

Carefully selected LED colour temperature maximises sharpness and definition

Electronic thermal management

‘Unbreakable’ polycarbonate lens

IP65 splash-proof

5-year warranty

Designed & manufactured in Britain

Technical Specifications

  SPOT DRIVE
Voltage Range (DC) 10-32V 10-32V
LED Life 50,000 hours 50,000 hours
Weight 440 gr 440 gr
HIGH BEAM FUNCTION
Total Luminous Flux 6760 Lm 7020 Lm
Number of High Output LEDs 6 6
Power Consumption 69 Watts 69 Watts
Current Draw (at 14.4V) 4.8 Amps 4.8 Amps
DIMENSIONS
Width 308 mm 308 mm
Depth 82 mm 82 mm
Height 70 mm 70 mm

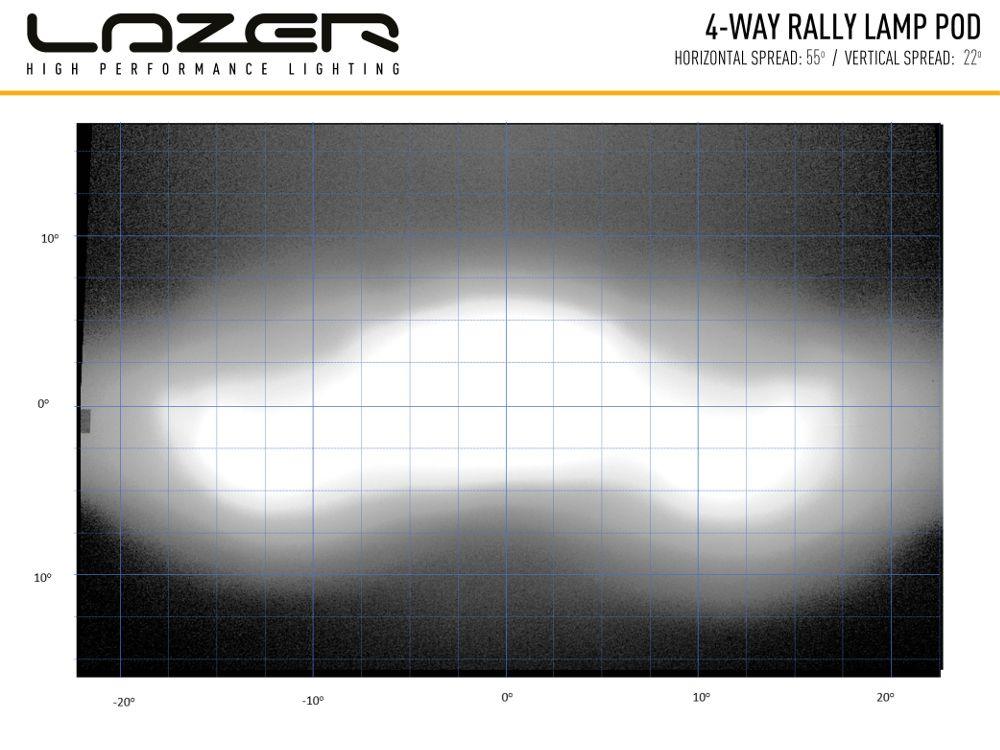

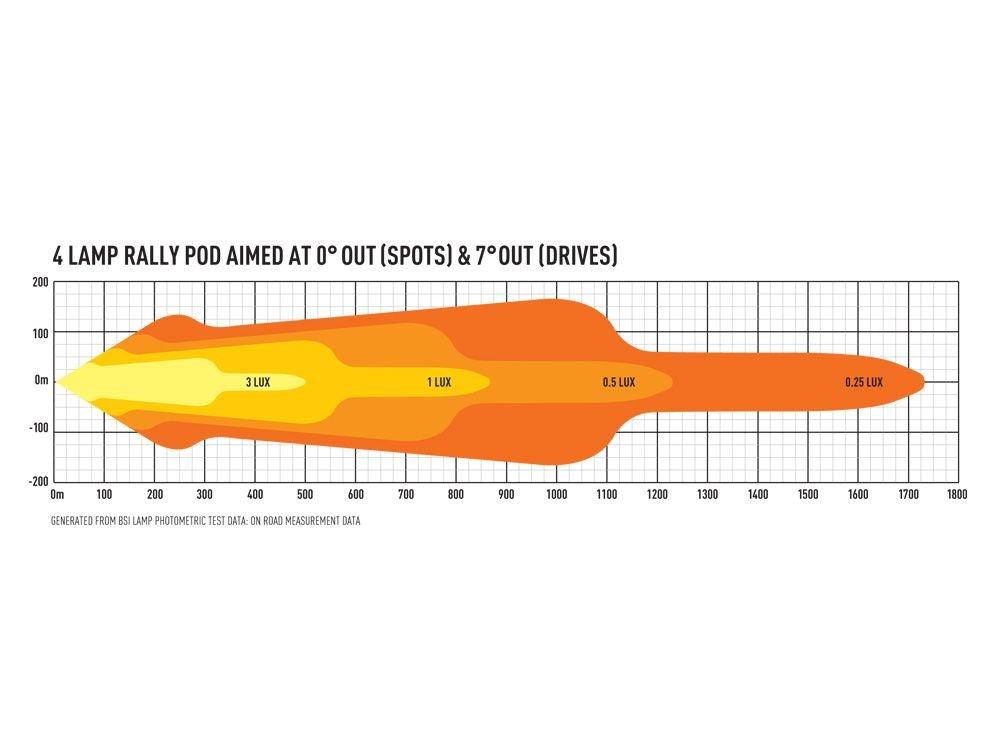

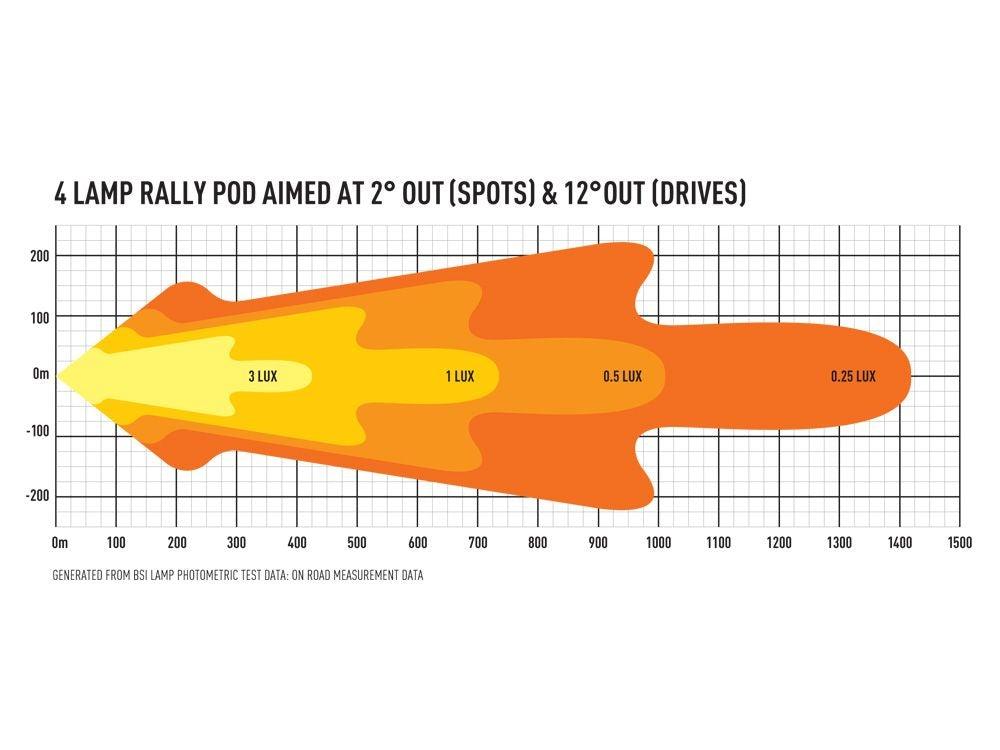

PHOTOMETRIC DATA
Horizontal Beam Angle 24 Degrees 34 Degrees
0.25 lx Line 1159 metres 1037 metres
0.5 lx Line 820 metres 733 metres
1 lx Line 580 metres 518 metres
3 lx Line 335 metres 299 metres
