HALTECH

Nexus Plug-in ECU - GM Delco HT-230801

Nexus Plug-in ECU - GM Delco HT-230801

Regular price $1,995.00 AUD
Regular price Sale price $1,995.00 AUD
Sale Sold out
Shipping calculated at checkout.
Nexus Plug-in ECU - GM Delco
Quantity

OVERVIEW

    Nexus GM Delco plug-in brings modern control and wireless connectivity to your classic Commodore.
    Effortless Setup
    Get up and running quickly using the intuitive Nexus Set-up Wizard.
    Wireless Control
    Connects directly via Bluetooth to the Haltech Connect App for easy adjustments and monitoring.
    Future Proof
    Expand your functionality easily with the optional expansion harness and CAN devices.
    Simple Install
    Supplied with mounting bracket for ease of fitment.
    This Nexus Plug-in ECU is compatible with the following vehicles:
    • Holden Commodore VN-VP V6 (DFI module), automatic and manual transmissions
    • Holden Commodore VN-VP V8 (Distributor), automatic and manual transmissions
    • Holden Commodore VR-VS V8 (Distributor), manual transmissions only; Does not support VS Series III
    • Holden Commodore VR V6 (DFI module), manual transmission only

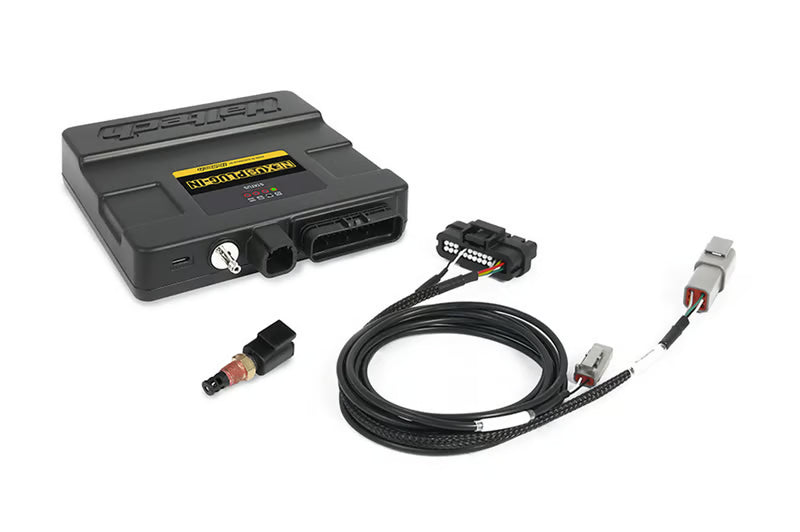

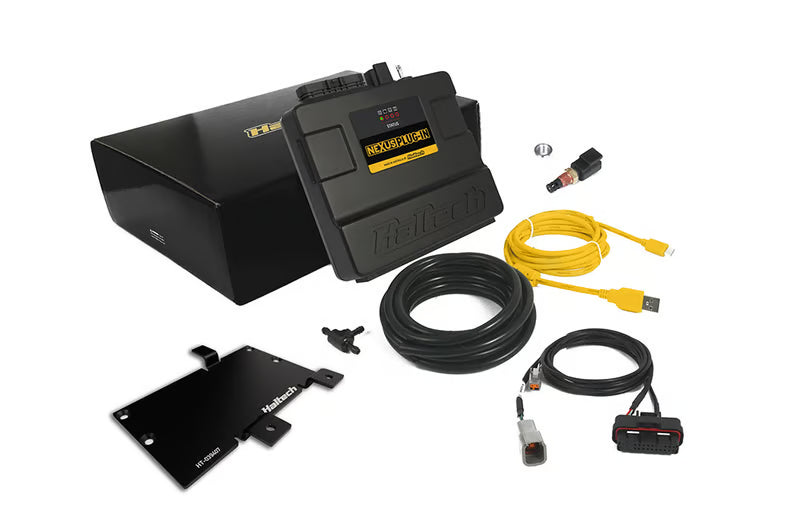

    Nexus Plug-in ECU includes
    • Nexus GM Delco ECU
    • Air temperature + Wideband expansion harness 2.5m (8')
    • Air temperature sensor (1/8' NPT)
    • Aluminium weld on fitting for air temperature sensor
    • Mounting bracket and hardware
    • 3mm Vacuum hose 2.5m (8')
    • 3mm Aluminium Vacuum T piece
    • Haltech USB-C cable
    • Quick start guide

    FEATURES

    NEXUS PLUG-IN ECU FEATURES
    • Single Channel Onboard Wideband Control - Supports LSU4.9/NTK
    • Wi-Fi
    • Long term learning
    • 4 channel onboard oscilloscope
    • Data logging 128MB
    • Flex Fuel
    • Closed Loop O2 Control
    • Knock Control
    • Advanced torque management
    • Engine Protection
    • Idle stepper motor control
    AUXILIARY CONNECTOR
    • 4 X Digital Pulsed Outputs
    • 4 X Synchronised Pulsed Inputs
    • 4 X Analogue Voltage Inputs
    • 1 X Onboard Wideband
    • 2 X Sensor Ground
    • 2 x 12V Output
    • 2 x 5V Output
    SUPPORTED OEM FUNCTIONALITY:
    • DFI module + factory coil packs (V6)
    • Ignition module + distributor
    • Ignition bypass signal
    • Multi-point injection - two injector outputs, each driving three or four high impedance injectors
    NOT SUPPORTED OEM FUNCTIONALITY
    • MAF sensor
    • Narrowband O2 sensor
