HALTECH

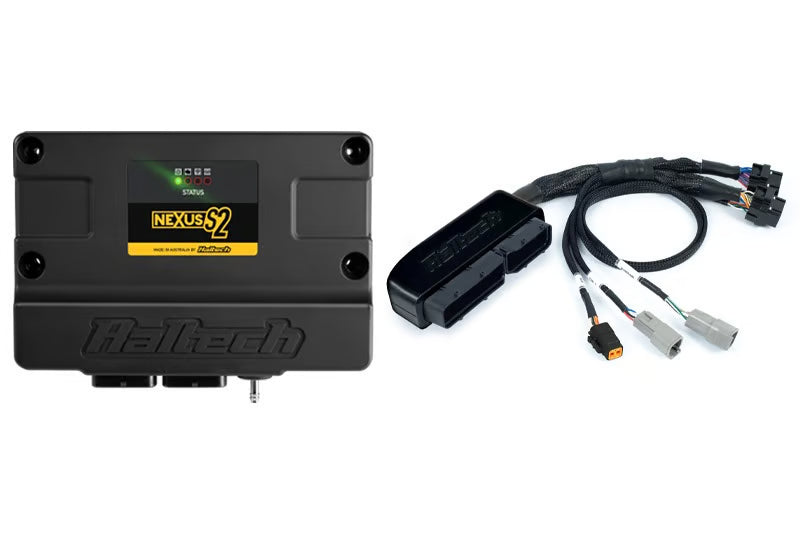

Nexus S2 Plug 'n' Play Adapter Harness Kit - VW/Audi 1.8T AWP HT-212325

Nexus S2 Plug 'n' Play Adapter Harness Kit - VW/Audi 1.8T AWP HT-212325

$3,035.00 AUD
$3,035.00 AUD
Sale Sold out
Shipping calculated at checkout.

OVERVIEW

    ECU OVERVIEW
    Haltech's Nexus S3 is the successor to the acclaimed Elite 2500, offering a serious upgrade in performance and functionality. The S3 combines all the classic functionality of the Elite 2500 with new features and the superior processing power of the successful Nexus platform.
    • 8 x peak/hold injector drivers (can be used as low side drive outputs)
    • 8 x low current ignition outputs (can be used as low side drive outputs)
    • 6 x low side drive outputs, PWM capable (DPOs)
    • 4 x push-pull / half bridge outputs (8A, PWM capable), eg for electronic throttle
    • 1 x ECR output
    • 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
    • Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
    • 6 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
    • 1 x on-board wideband controller, supporting NTK and LSU4.9
    • 1 x on-board 4 bar MAP sensor
    • 2 x CAN ports with switchable termination
    • Onboard data logging - Up to 300 channels of logging at sample rates up to 1ms (1kHz) with 128MB of internal memory



    Suits: Plug 'n' Play replacement of the factory ECU for VW/Audi 1.8T AWP ONLY (2001-2006) Volkswagen Golf Mk4 GTI, Bora/Jetta, Beetle, Polo GTI, Audi A3, A4 Quattro Sport, TT Mk1 (8N), Skoda Octavia vRS & SEAT Leon, Toledo. Manual transmission only.

    Includes: Nexus S3 ECU, Overmoulded molded plug 'n' play adaptor harness, M14 x 1.5 air temp sensor with matching plug and pins, auxiliary I/O 6 Pin DTM06-6P and pins.

    Notes: The CAN dash support was developed on a 2003 VW Beetle - other models may not be supported or have reduced dash functionality.



    FEATURES

    ECU FEATURES
    • Controlled via NSP (Nexus Software Programmer)
    • Long Term Learning
    • Stepper Motor Control
    • 4D Closed Loop Boost Control
    • Closed Loop CO2 Control
    • Rotational Idle
    • Launch Control
    • Traction Control
    • Anti-Lag
    • Dual Knock Control
    • Trans Brake Control
    • Race Timer
    • Multi Stage Fuel Injection
    • Multi-level Engine Protection
    • 6 Stage Nitrous Control
    • 4-sensor variable cam control
    • Intake Air Bleed Control
    • Flat Shift Control
    • Shock Travel & Ride Height Control
    • Advanced Torque Management
    • On-board Wi-Fi
    • On-board datalogging (128MB)
    AUTOMATIC TRANSMISSION CONTROL
    • Ford AODE/4R70W
    • GM 4L60E
    • GM 4L80E
    • Toyota A340E
    • Lenco
    • Liberty
