Adrian Stratford Motorsport

TRIPLE-R 1000 ELITE

Regular price $745.00 AUD
Regular price Sale price $745.00 AUD
Sale Sold out
Shipping calculated at checkout.

The iconic Triple-R range, upgraded in 2020/21, delivers exceptional, long-range auxiliary LED automotive lighting. Initially developed for the uncompromising requirements of professional track and rally motorsport, the range has evolved to become a firm favourite across the passenger car, 4x4, light commercial, and heavy truck market, both on and off-road. Recent additions to the Triple-R range boast innovative features and functionality, including patent-pending technology never seen before in an auxiliary LED light bar.

Incorporating an arrangement of high efficiency, premium ‘bin’ LEDs at a carefully selected 5000K colour temperature, with 80CRI for high levels of sharpness and clarity, the Triple-R Elite products represent our most powerful driving lights. The electronics and optic design work in combination to deliver incredible distance illumination, yet still with enviable left/right spread. The comparatively low up/down spread of light emitted from the Elite lights ensures their suitability when roof mounting, avoiding reflective glare off the vehicle bonnet.

Standard level products feature integrated (optional) white and/or amber position light function for added styling and safety benefits. Alongside the premium design of the lights themselves, you can be sure your Triple-R product will impress even before the sun goes down! High efficiency 11W LEDs deliver impressive distance illumination albeit with not quite the same left/right visibility that you otherwise find with the equivalent Elite level products. A slightly taller up/down spread does however ensure suitability when mounting high on a vehicle such as a truck cab or roof of a van or other light commercial vehicle.

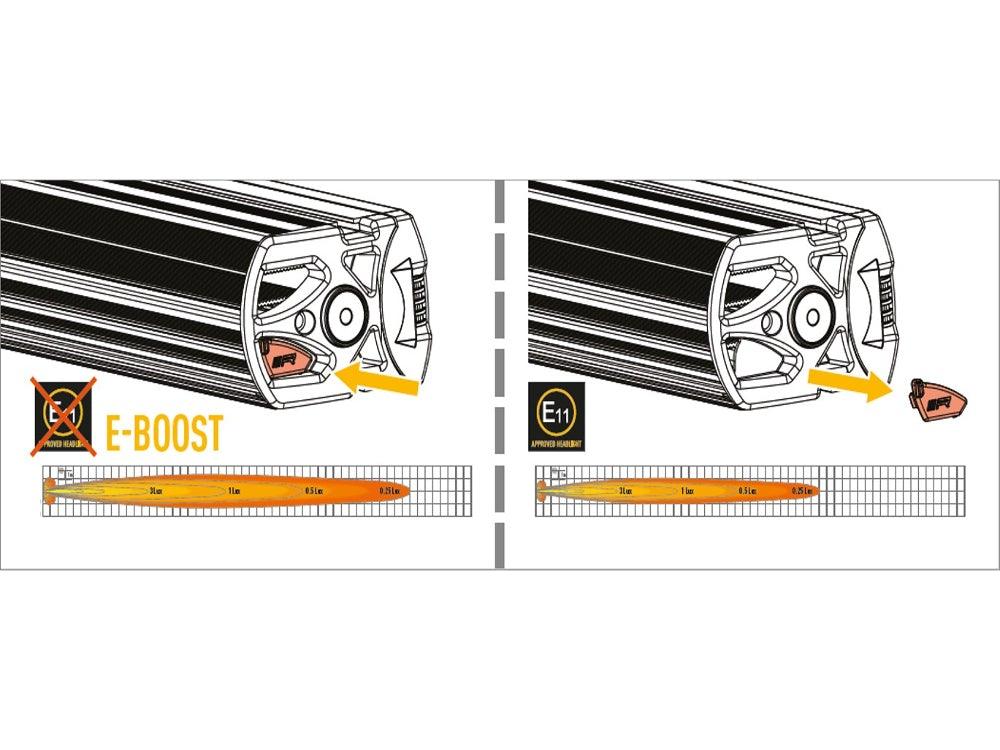

Available in a variety of sizes from the 230mm (9”) Triple-R 750 to the 1305mm (51”) Triple-R 28 Elite, all Triple-R products up to the 590mm (23”) Triple-R 1250, benefit for approval to UNECE Regulation 112 as a high beam driving light. In many cases certification is only achieved using dual-output E-Boost technology, allowing the lamp to be used in both E-Boost or E-Mark Compliant mode depending on country-specific regulations and whether the light(s) are being used on or off-road.

Like all Lazer high performance lights, the Triple-R range is designed, engineered, and built in-house, in our UK premises, you can be fully assured of exceptional high-end product design, coupled with superior levels of illumination, all backed up by our comprehensive 5-year warranty.

What's included:
- x1 Triple-R 1000 Elite LED Lamp
- x2 Centre Mount (1114k)
- x1 Installation Instructions

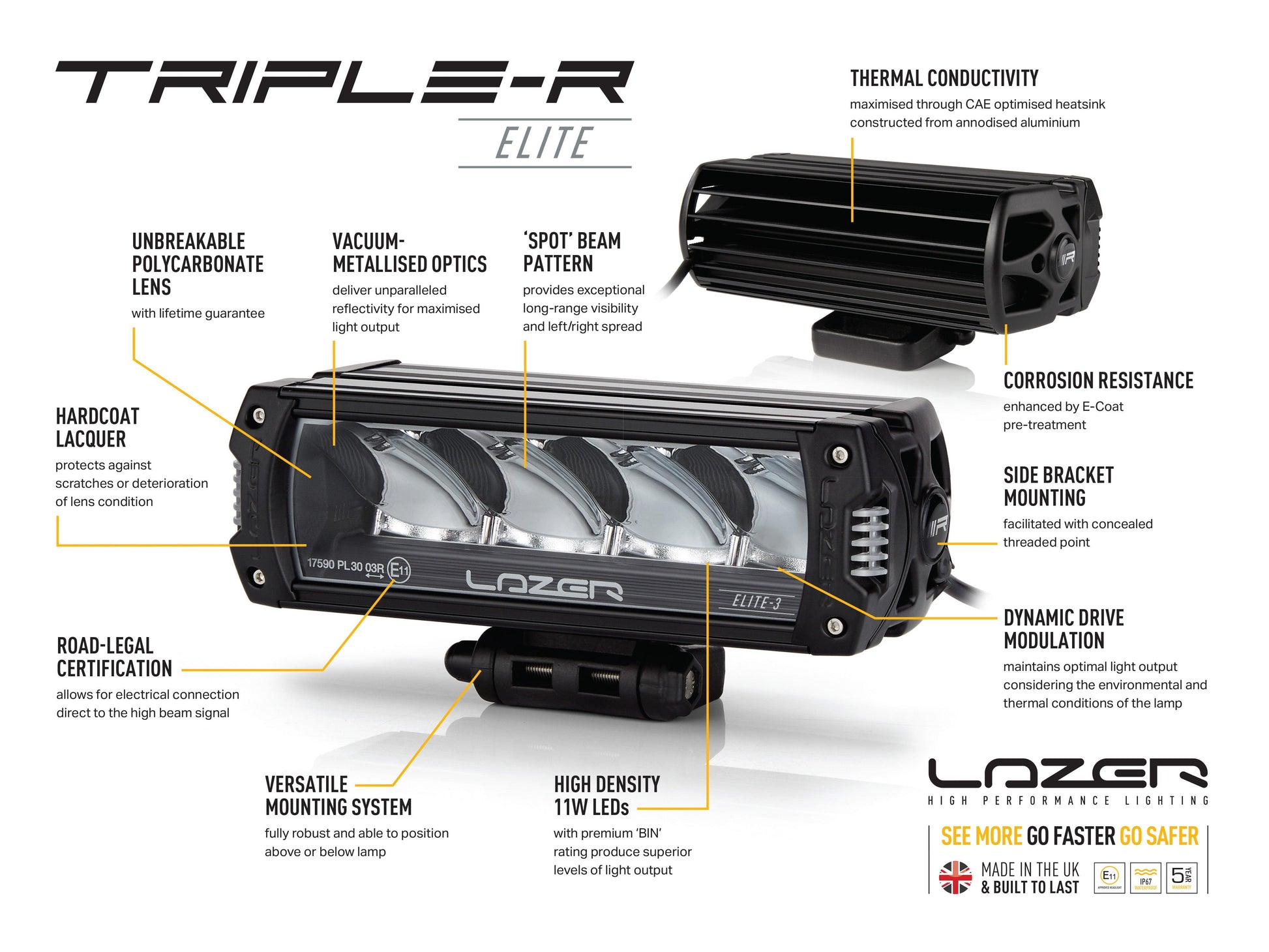

PRODUCT FEATURES

Ultra-reflective vacuum-metallised optics deliver perfectly tuned beam pattern

Highly efficient LED technologies (upgraded for 2020/21)

5000K LED colour temperature and 80CRI maximises sharpness and definition

Ultra-reflective vacuum-metallised optics deliver spot beam pattern

UNECE Reg 112 Class B Driving Light, approved for on-road high beam (E-Boost technology)

Contemporary lamp design

Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)

Electronic thermal management system optimises light output to preserve longevity of the LEDs

Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

CAE optimised heatsink offers improved thermal dynamics

Over voltage protected

Reverse polarity protected

‘Unbreakable’ polycarbonate lens with hardcoat lacquer

UNECE approved Reg 10

IP67 watertight

5-year warranty

Supplied with pre-wired male/female 2-pin Superseal connectors

Designed & manufactured in UK

TECHNICAL SPECIFICATIONS

Technical Specifications
  GEN2 GEN1
  E-Boost E-Mark Mode E-Boost E-Mark Mode
Voltage Range (DC) 10-32V 9-32V 10-32V 9-32V
LED Life 50,000 hrs 50,000 hrs 50,000 hrs 50,000 hrs
Weight 1.7 kg 1.7 kg 1.42 kg 1.42 kg
HIGH BEAM FUNCTION
Total Luminous Flux

10136 Lm

2534 Lm

9020 Lm3157

 Lm

Colour Temperature 5000k 5000k 5000k 5000k
Number of High Output LEDs 8 8 8 8
Power Consumption 104 Watts 23 Watts 92 Watts 32 Watts
Current Draw (at 14.4V) 7.2 Amps 1.6 Amps 6.4 Amps 2.2 Amps
Start-up Time * 100ms 100ms 100ms 100ms
CERTIFICATION
High Beam N/A ECE R112 N/A ECE R112
E-Mark Ref N/A 25 N/A 40

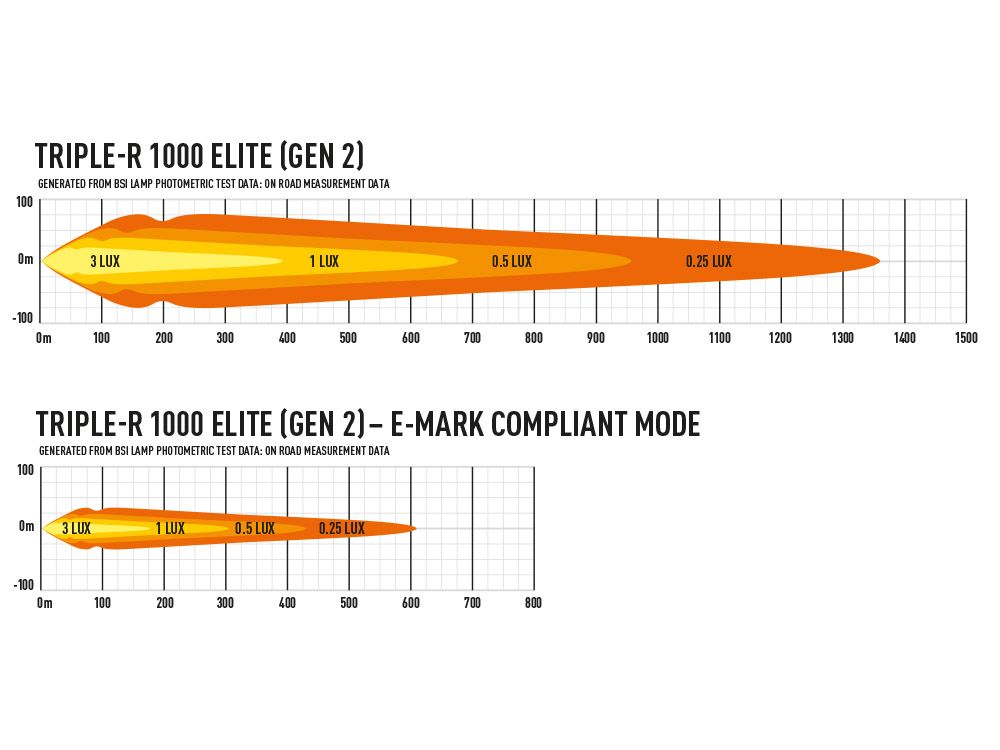

PHOTOMETRIC DATA
Horiz Beam Angle 42 Deg 42 Deg 21 Deg 21 Deg
0.25 lx Line 1358 metres 607 metres 1351 metres 799 metres
0.5 lx Line 960 metres 429 metres 955 metres 565 metres
1 lx Line 679 metres 304 metres 675 metres 399 metres
3 lx Line 392 metres 175 metres 390 metres 231 metres
