Adrian Stratford Motorsport

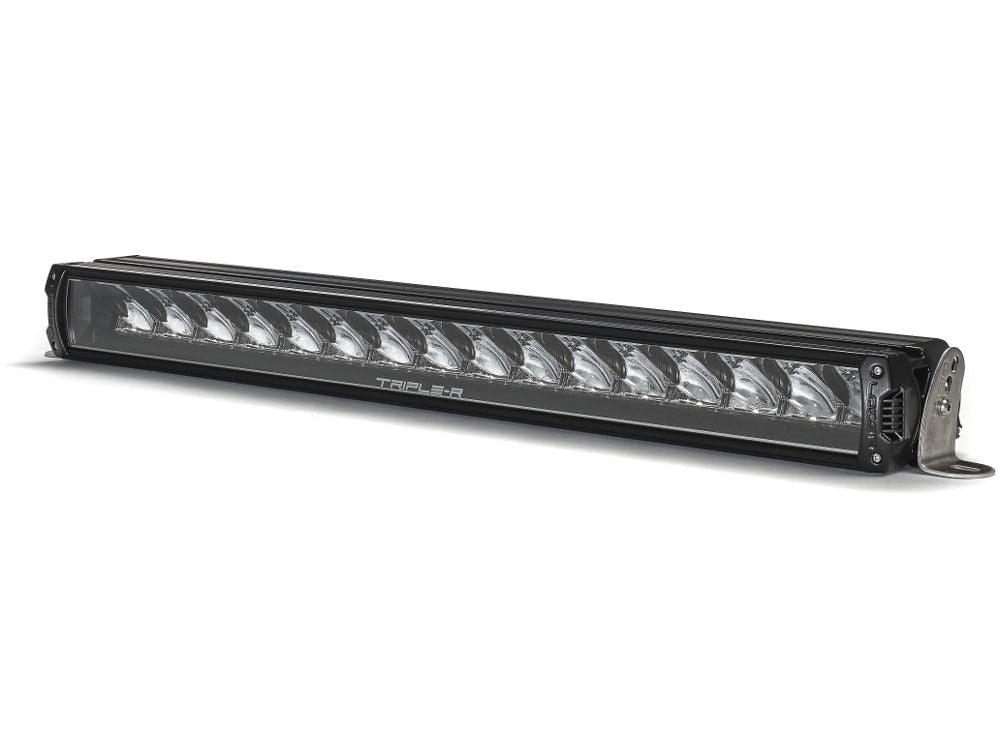

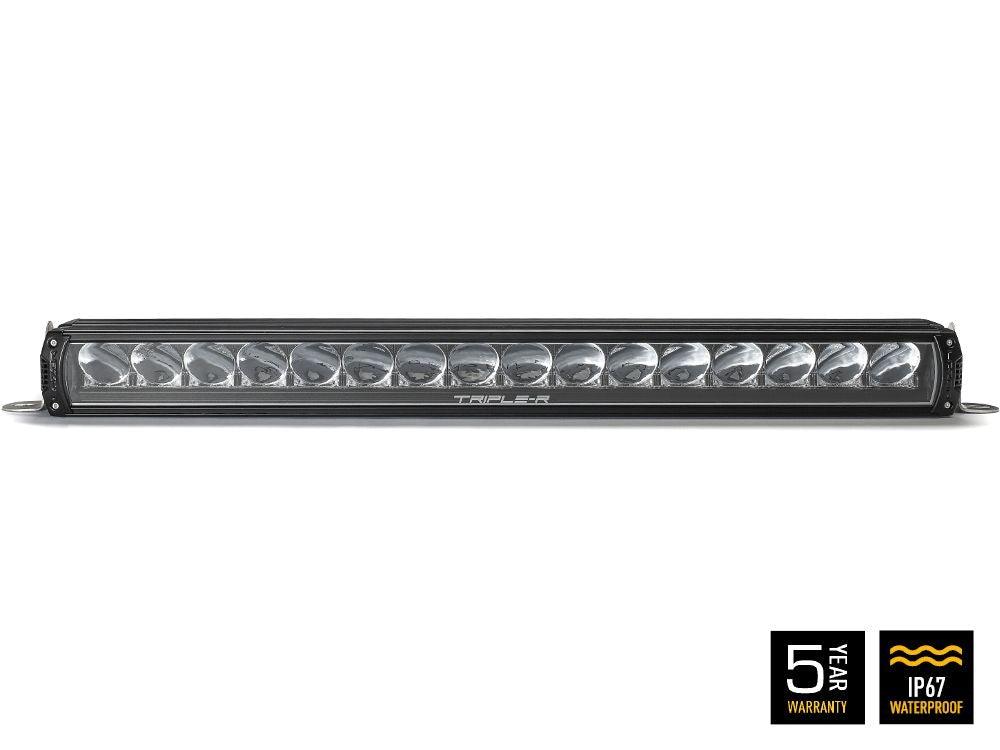

TRIPLE-R 16

Regular price $910.00 AUD
Regular price Sale price $910.00 AUD
Sale Sold out
Shipping calculated at checkout.

The Triple-R light bar range brings motorsport and world rally performance to the off-road market. Compared with the equivalent 'drive' optic (T16) product, the Triple-R 16 delivers 5x the peak intensity to deliver a mid-long range LED solution which will transform night-time and low-light off-road driving and recreation.

Tuned for a spot beam pattern, while still achieving a decent spread of light in the mid-long range, the Triple-R 16 comprises 16 high power LEDs producing 16,400 lumens at only 180 watts. The light delivers 1 lux at a distance of 900m, which at a mere 2.46kg, and 30” in length, it’s phenomenal levels of illumination for a product of its size. Through the use of the Triple-R Reeded Lens system, the beam pattern can be easily tailored to provide additional spread when, or if, required.

Comprising our unique vacuum metallised hooded reflector system (with 100% light utilisation), a CAE optimised heatsink, and electronic thermal management system, the light output from the Triple-R 16 is optimised at all times. Furthermore, the rear-facing orientation of the LEDs reduces ‘scatter’ and enhances lighting performance in environments where fog or dust is prevalent.

As with all Lazer products, we design our products in-house utilising the latest and most advanced component technologies to maximise performance and reliability. The unique styling of the Triple-R range alongside a fully aluminium enclosure, gore-tex breather membrane, and virtually unbreakable polycarbonate lens cover, means the Triple-R 16 will look good in even the toughest of environments.

The light comes supplied with vehicle wiring kit and both side brackets and sliding centre mounts, to ensure maximum flexibility and ease of vehicle fitment. For off-road driving the Triple-R 16 offers versatility and performance which is difficult to beat.

What's included:
- x1 Triple-R 16 Standard LED Lamp
- x2 Centre Mount (1114k)
- x1 Side Bracket Kit (1118k)
- x1 Single-Lamp Wiring Kit with Switch (8216-12V-SW)
- x1 Wiring and Installation Instructions


PRODUCT FEATURES

Ultra long range optics

High output LED’s from world leader in LED technology

CAE optimised heatsink

Electronic thermal management system

‘Unbreakable’ polycarbonate lens*

Unique styling

Anodised aluminium heatsink provides for improved thermal dynamics (see Download section for Care Instructions)

Supplied with vehicle wiring kit (8216-12V-SW) and both Side Brackets (1118K) and sliding Centre Mounts (1114K)

IP67 Watertight

5 year warranty

Designed & manufactured in the UK

TECHNICAL SPECIFICATIONS

Technical Specifications
Voltage Range 9-32V
LED Life 50,000 hours
Optical Efficiency 92%
Weight 2460 gr
HIGH BEAM FUNCTION
Total Luminous Flux 16400 Lm
Colour Temperature 5000K
Number of High Output LEDs 16
Power Consumption 180 Watts
Current Draw (at 14.4V) 12.5 Amps
CERTIFICATION
High Beam Not certified

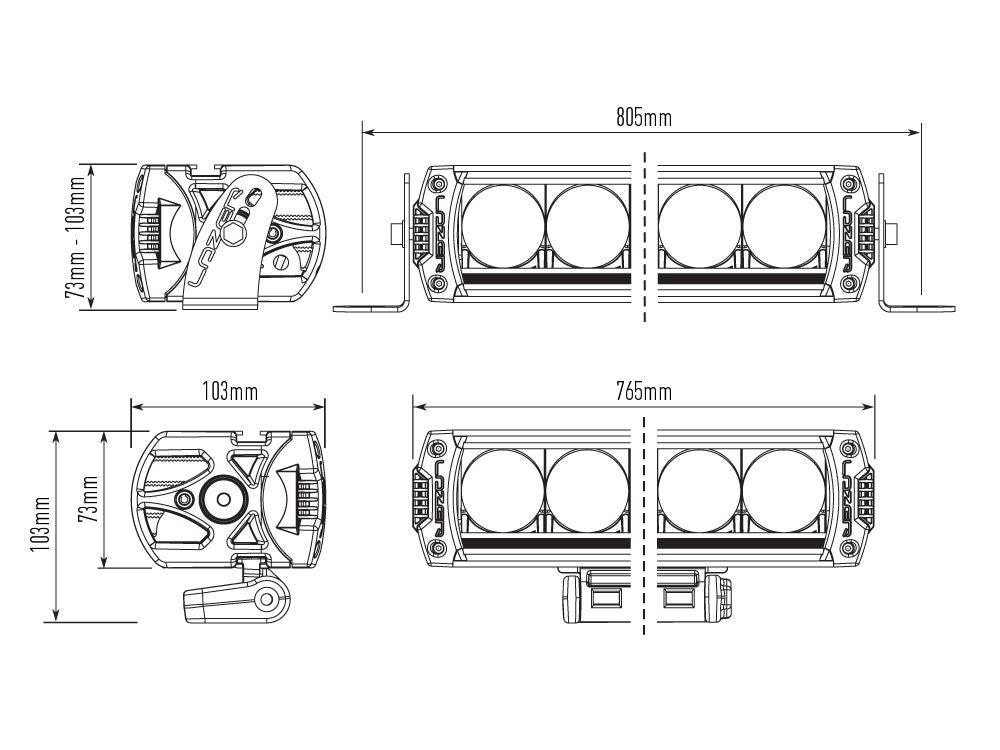

DIMENSIONS
Width 765 mm
Depth 103 mm
Height 73 mm

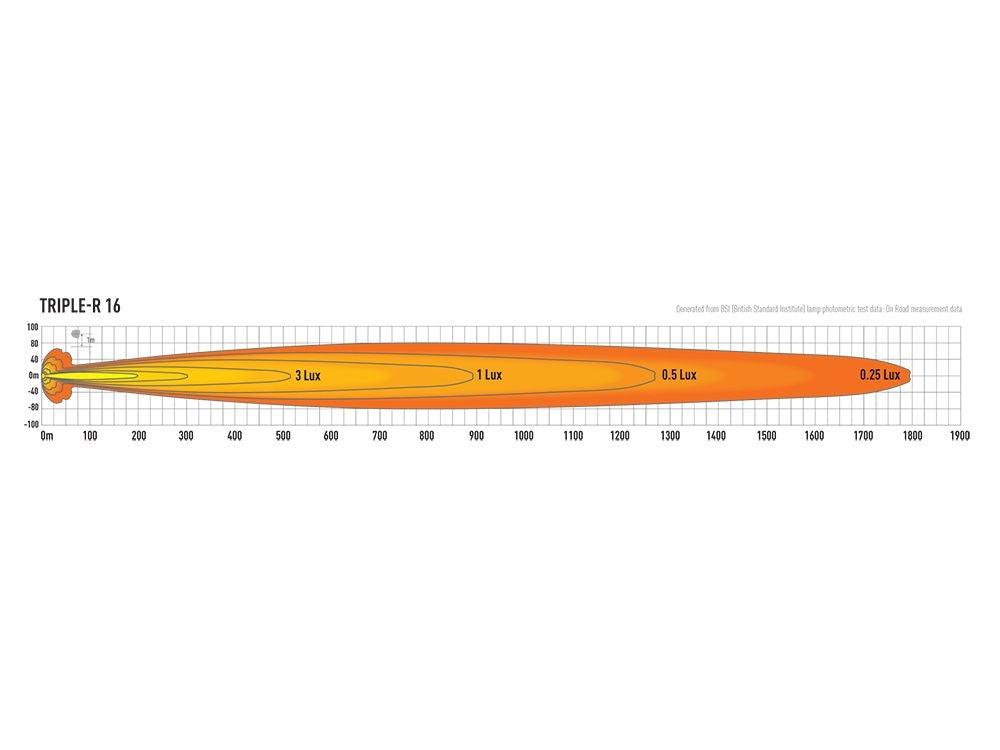

PHOTOMETRIC DATA

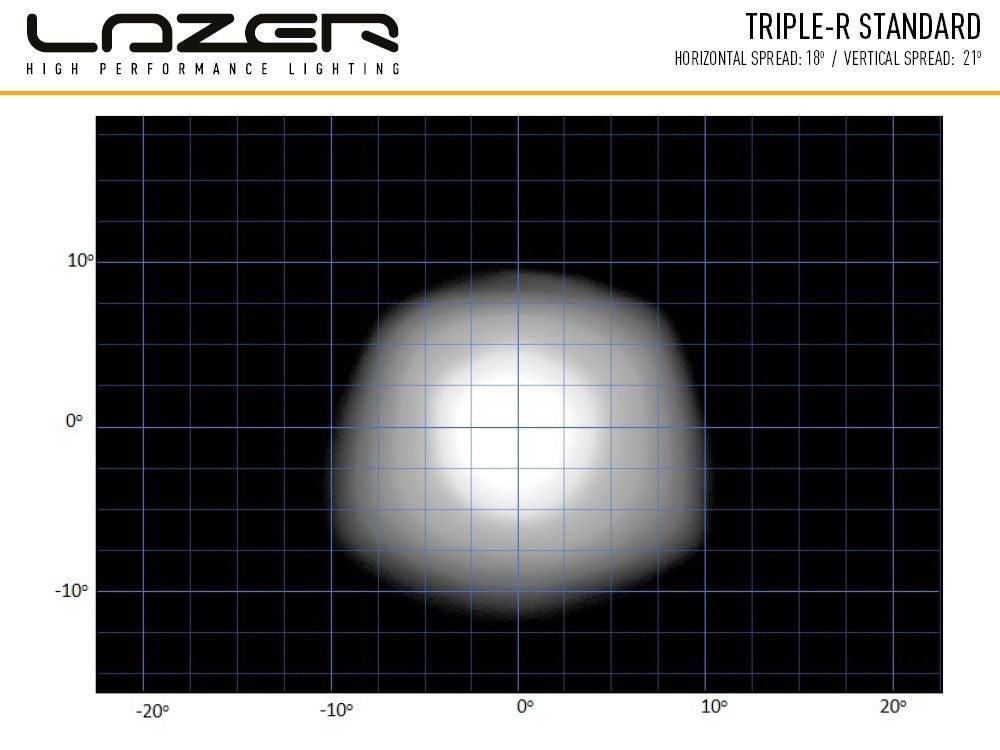

Horizontal Beam Angle 11 degrees
0.25 lx Line 1796 metres
0.5 lx Line 1270 metres
1 lx Line 898 metres
3 lx Line 519 metres
