Adrian Stratford Motorsport

TRIPLE-R 28

Regular price $1,220.00 AUD
Regular price Sale price $1,220.00 AUD
Sale Sold out
Shipping calculated at checkout.

The iconic Triple-R range, upgraded in 2020/21, delivers exceptional, long-range auxiliary LED automotive lighting. Initially developed for the uncompromising requirements of professional track and rally motorsport, the range has evolved to become a firm favourite across the passenger car, 4x4, light commercial, and heavy truck market, both on and off-road. Recent additions to the Triple-R range boast innovative features and functionality, including patent-pending technology never seen before in an auxiliary LED light bar.

Incorporating an arrangement of high efficiency, premium ‘bin’ LEDs at a carefully selected 5000K colour temperature, with 80CRI for high levels of sharpness and clarity, the Triple-R Elite products represent our most powerful driving lights. The electronics and optic design work in combination to deliver incredible distance illumination, yet still with enviable left/right spread. The comparatively low up/down spread of light emitted from the Elite lights ensures their suitability when roof mounting, avoiding reflective glare off the vehicle bonnet.

Standard level products feature integrated (optional) white and/or amber position light function for added styling and safety benefits. Alongside the premium design of the lights themselves, you can be sure your Triple-R product will impress even before the sun goes down! High efficiency 11W LEDs deliver impressive distance illumination albeit with not quite the same left/right visibility that you otherwise find with the equivalent Elite level products. A slightly taller up/down spread does however ensure suitability when mounting high on a vehicle such as a truck cab or roof of a van or other light commercial vehicle.

Available in a variety of sizes from the 230mm (9”) Triple-R 750 to the 1305mm (51”) Triple-R 28 Elite, all Triple-R products up to the 590mm (23”) Triple-R 1250, benefit for approval to UNECE Regulation 112 as a high beam driving light. In many cases certification is only achieved using dual-output E-Boost technology, allowing the lamp to be used in both E-Boost or E-Mark Compliant mode depending on country-specific regulations and whether the light(s) are being used on or off-road.

Like all Lazer high performance lights, the Triple-R range is designed, engineered, and built in-house, in our UK premises, you can be fully assured of exceptional high-end product design, coupled with superior levels of illumination, all backed up by our comprehensive 5-year warranty.

What's included:
- x1 Triple-R 28 Standard LED Lamp
- x3 Centre Mount (1114k)
- x1 Side Bracket Kit (1118k)
- x1 Single-Lamp Wiring Kit with Switch (8216-12V-SW)
- x1 Wiring and Installation Instructions

PRODUCT FEATURES

Ultra-reflective vacuum-metallised optics deliver perfectly tuned beam pattern

Highly efficient LED technologies (upgraded for 2020/21)

5000K LED colour temperature and 80CRI maximises sharpness and definition

Ultra-reflective vacuum-metallised optics deliver spot beam pattern

Contemporary lamp design

Improved aero design benefits low wind noise performance

Vehicle wiring kit included (1L-HP-300)

Includes ‘Centre Mount’ and Side Mount Kit

Electronic thermal management system optimises light output to preserve longevity of the LEDs

Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

CAE optimised heatsink offers improved thermal dynamics

Over voltage protected

Reverse polarity protected

‘Unbreakable’ polycarbonate lens with hardcoat lacquer

UNECE approved Reg 10

IP67 watertight

5-year warranty

Supplied with pre-wired male/female 2-pin Superseal connectors

Designed & manufactured in UK

TECHNICAL SPECIFICATIONS

Voltage Range 9-32V
LED Life 50,000 hours
Optical Efficiency 92%
Weight 4400 gr
HIGH BEAM FUNCTION
Total Luminous Flux 28700 Lm
Colour Temperature 5000K
Number of High Output LEDs 28
Power Consumption 315 Watts
Current Draw (at 14.4V) 21.9 Amps
CERTIFICATION
High Beam Not certified

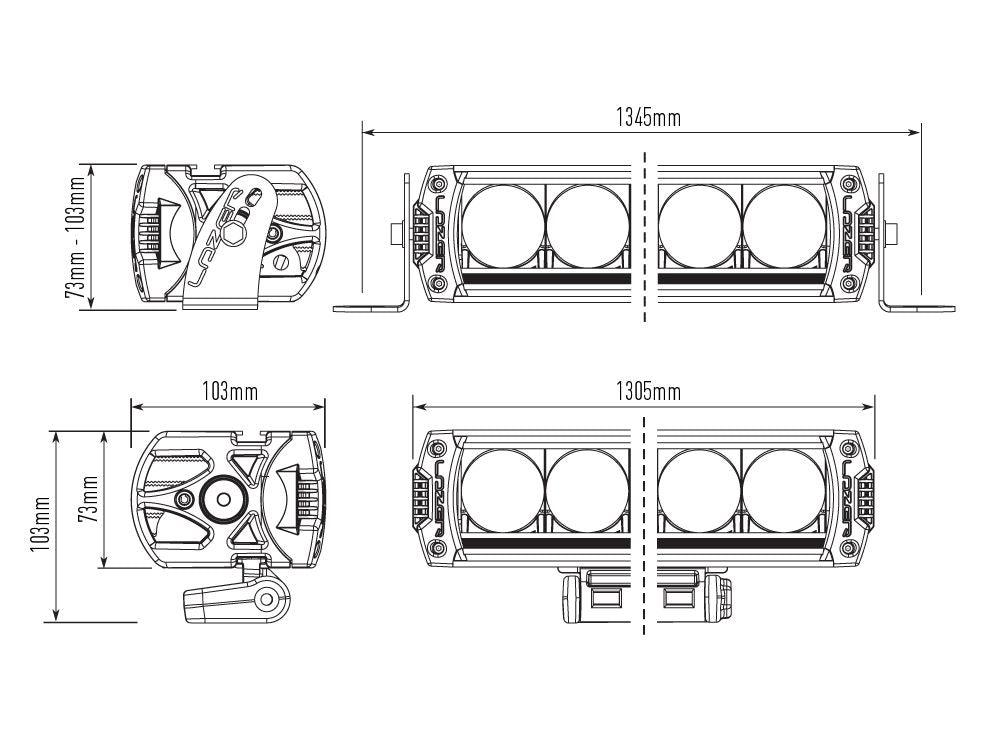

DIMENSIONS
Width 1305 mm
Depth 103 mm
Height 73 mm

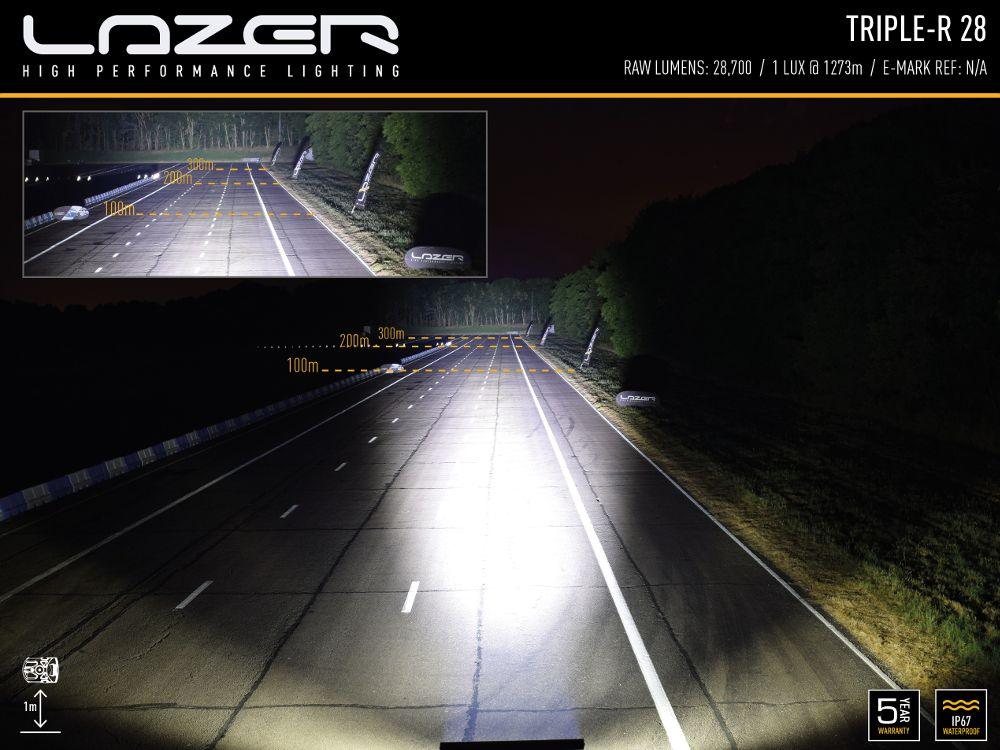

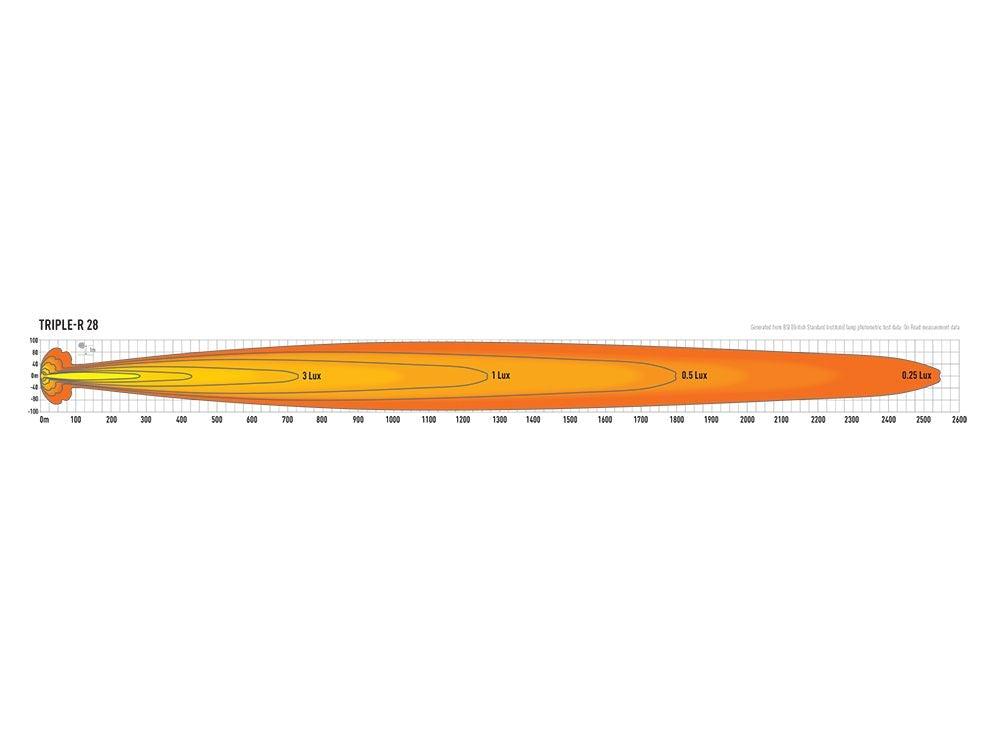

PHOTOMETRIC DATA
Horizontal Beam Angle 11 degrees
0.25 lx Line 2546 metres
0.5 lx Line 1800 metres
1 lx Line 1273 metres
3 lx Line 735 metres
